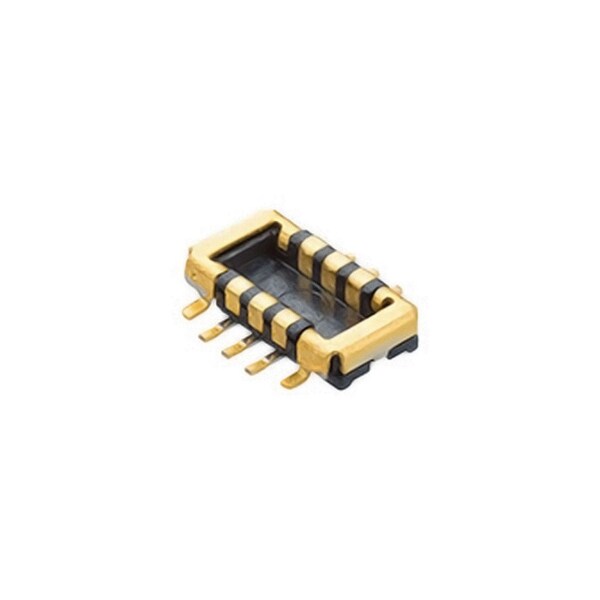

Conectores de placa a placa y mezzanine 0.35 B / B Plg Assy 24Ckt Embstp Pkg.
| Application | Board-to-Board |
|---|---|
| Series | 505274 |
| Breakaway | No |
| Current - Maximum per Contact | 0.3 A, 3 A |
| Plating min - Mating | 0.1 um |
| PCB Locator | No |
| Mated Width | 2 mm |
| Color - Resin | Black |
| Orientation | Vertical |
| Durability (mating cycles max) | 30 |
| Pitch - Mating Interface | 0.35 mm |
| Termination Interface Style | Surface Mount |
| Product Name | SlimStack |
| Material - Metal | Copper Alloy |
| Polarized to Mating Part | No |
| PCB Retention | Yes |
| Polarized to PCB | No |
| Voltage - Maximum | 50V AC (RMS)/DC |
| Number of Rows | 2 |
| Component Type | PCB Header |
| Material - Resin | Liquid Crystal Polymer |
| Material - Plating Mating | Gold |
| Temperature Range - Operating | -40° to +85°C |
| Circuits (Loaded) | 24 |
| Glow-Wire Capable | No |
| Material - Plating Termination | Gold |
| Mated Height | 0.8 mm, 0.9 mm |
| Package Quantity | 1 |
