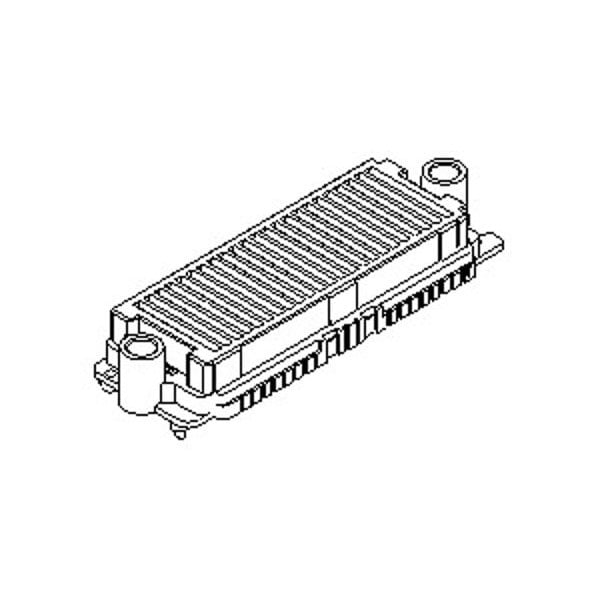

Conectores de placa a placa y mezzanine Hdmezz Recpt Assy 08 Ssy 08Mm 143 Ckt Tin.
| Material | High Temperature Thermoplastic |
|---|---|
| Max. Voltage | 250 V AC |
| Application | Board-to-Board, Signal |
| Series | 45802 |
| Color | Black |
| Standards | CSA Certified, UL E29179 |
| Features | Surface Mount Compatible |
| Number of Rows | 11 |
| Contact Finish | Gold Plated |
| Terminal Type | Surface Mount |
| Max. Temp. | 260 deg C |
| Contact Plating Thickness | 0.762 µm |
| Number of Contacts | 143 |
| Flammability Rating | UL 94V-0 |
| Current Rating | 2 A |
| Hole Center to Center | 2 mm |
| Terminal Finish | Tin Plated |
| Circuits (Loaded) | 143 |
| Max-Duration | 20 |
| Material - Plating Termination | Tin |
| Current - Maximum per Contact | 2 A |
| PCB Locator | Yes |
| PCB Thickness - Recommended | 1.6 mm |
| Max-Temp | 260 |
| Plating min - Mating | 0.762 um |
| Product Name | HD Mezz |
| Grounding to PCB | No |
| Unmated Height | 8.5 mm |
| Stackable | No |
| Flammability | 94 V to 0 |
| CSA | LR19980 |
| Robotic Placement | Vacuum Pick-Up Tape |
| Orientation | Vertical |
| Keying to Mating Part | None |
| Guide to Mating Part | No |
| Temperature Range - Operating | -55° to +105°C |
| Polarized to PCB | Yes |
| Material - Resin | High Temperature Thermoplastic |
| Durability (mating cycles max) | 100 |
| Component Type | PCB Receptacle |
| Pitch - Mating Interface | 2 mm |
| Material - Metal | High Performance Alloy |
| PCB Retention | Yes |
| Lock to Mating Part | Yes |
| UL | E29179 |
| Glow-Wire Capable | No |
| Material - Plating Mating | Gold |
| Polarized to Mating Part | Yes |
| Max-Cycle | 2 |
| Package Quantity | 1 |
