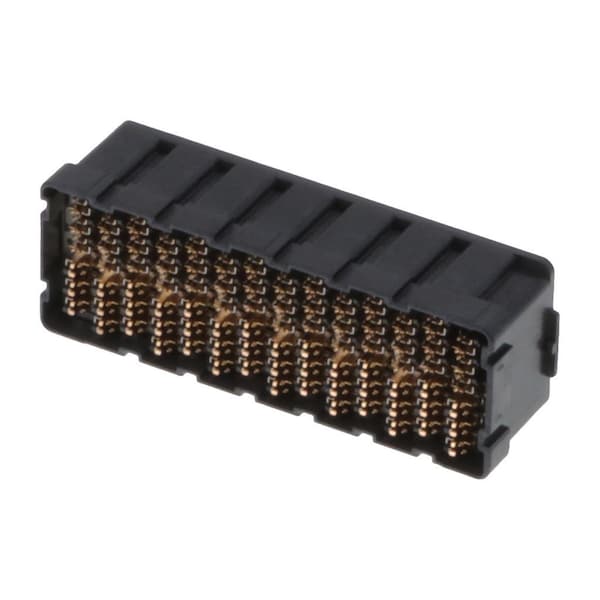

Conectores para Placa a Placa y mezanine Neopress 6X14 Plug de 13.5mm.
| Material | Liquid Crystal Polymer |
|---|---|
| Max. Voltage | 30 V AC |
| Application | Board-to-Board, Signal |
| Series | 172801 |
| Color | Black |
| Standards | UL E29179 |
| Number of Rows | 6 |
| Contact Finish | Gold |
| Hole Center to Center | 3.5 mm |
| Number of Contacts | 252 |
| Current Rating | 1 A |
| Flammability Rating | UL 94V-0 |
| Contact Plating Thickness | 0.762 µm |
| Terminal Finish | Tin |
| Sub-Category | PCB Headers |
| Terminal Type | Through Hole - Compliant Pin |
| Max. Temp. | 85 deg C |
| UL | E29179 |
| Stackable | Yes |
| Material - Resin | Liquid Crystal Polymer |
| Glow-Wire Capable | No |
| Keying to Mating Part | None |
| Material - Plating Mating | Gold |
| Material - Plating Termination | Tin |
| Pitch - Mating Interface | 3.5 mm |
| Temperature Range - Operating | -55° to +85°C |
| Material - Metal | High Performance Alloy |
| Lock to Mating Part | No |
| PCB Locator | No |
| First Mate / Last Break | No |
| Polarized to Mating Part | Yes |
| Circuits (Loaded) | 252 |
| Shrouded | Yes |
| Component Type | PCB Header |
| Current - Maximum per Contact | 1 A |
| Product Name | NeoPress |
| Breakaway | No |
| Robotic Placement | None |
| Voltage - Maximum | 30 V |
| Orientation | Vertical |
| Guide to Mating Part | No |
| Flammability | 94 V to 0 |
| Durability (mating cycles max) | 100 |
| PCB Retention | None |
| Polarized to PCB | Yes |
| PC Tail Length | 1.38 mm |
| Plating min - Mating | 0.762 um |
| Package Quantity | 1 |
