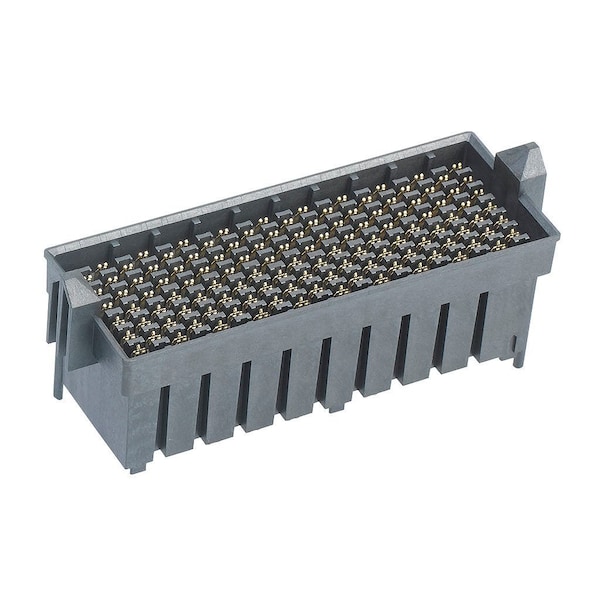

Conectores de placa a placa y para mezanine, ensamble de receptáculo Neoscale de 18 mm 6x12.
| Material | High Temperature Thermoplastic |
|---|---|
| Max. Voltage | 30 V AC |
| Application | Board-to-Board, Signal |
| Series | 170814 |
| Color | Black |
| Number of Rows | 6 |
| Hole Center to Center | 2.8 mm |
| Contact Finish | Gold Plated |
| Current Rating | 1 A |
| Sub-Category | PCB Receptacles |
| Max. Temp. | 260 deg C |
| Number of Contacts | 216 |
| Terminal Type | Solder, Weld |
| Contact Plating Thickness | 0.762 µm |
| Guide to Mating Part | Yes |
| Material - Plating Mating | Gold |
| Polarized to Mating Part | Yes |
| Keying to Mating Part | None |
| Voltage - Maximum | 30 V |
| Temperature Range - Operating | -55° to +85°C |
| Component Type | PCB Receptacle |
| Polarized to PCB | Yes |
| Pitch - Mating Interface | 2.8 mm |
| Orientation | Vertical |
| Plating min - Mating | 0.762 um |
| Lock to Mating Part | No |
| Material - Plating Termination | Tin |
| PCB Retention | Yes |
| Grounding to PCB | No |
| Current - Maximum per Contact | 1 A |
| Circuits (Loaded) | 216 |
| PCB Locator | Yes |
| Glow-Wire Capable | No |
| Max-Duration | 20 |
| Material - Metal | High Performance Alloy |
| Product Name | NeoScale |
| Max-Temp | 260 |
| Material - Resin | Liquid Crystal Polymer |
| Max-Cycle | 1 |
| Durability (mating cycles max) | 100 |
| Package Quantity | 1 |
