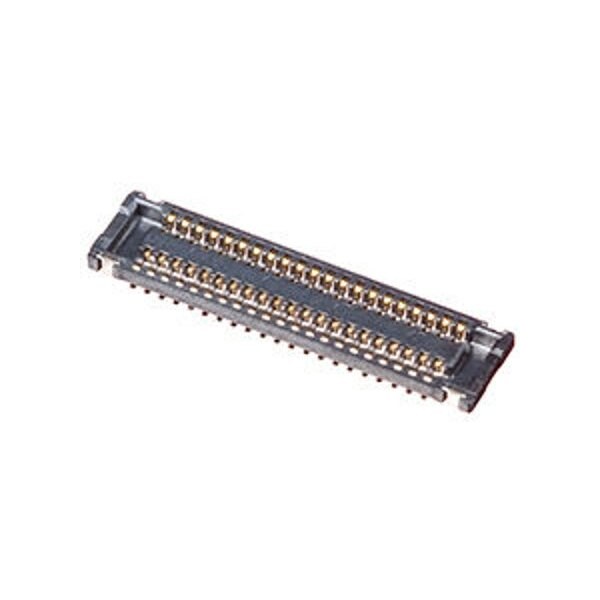

Conectores Board To Board & Mezzanine Slimstack de 0.40mm, montaje en superficie (SMT), orientación vertical, 30 posiciones.
| Application | Board-to-Board, Signal |
|---|---|
| Series | 503304 |
| Mated Height | 0.7 mm |
| Product Name | SlimStack |
| PCB Locator | No |
| Circuits (Loaded) | 30 |
| Mated Width | 2.6 mm |
| Material - Resin | Liquid Crystal Polymer |
| Material - Metal | Copper Alloy |
| Polarized to Mating Part | No |
| Voltage - Maximum | 50V AC (RMS)/DC |
| Number of Rows | 2 |
| Pitch - Mating Interface | 0.4 mm |
| Temperature Range - Operating | -40° to +85°C |
| Orientation | Vertical |
| PCB Retention | Yes |
| Color - Resin | Black |
| Component Type | PCB Receptacle |
| Polarized to PCB | No |
| Termination Interface Style | Surface Mount |
| Durability (mating cycles max) | 30 |
| Glow-Wire Capable | No |
| Lock to Mating Part | Yes |
| Current - Maximum per Contact | 0.3 A |
| Material - Plating Mating | Gold |
| Material - Plating Termination | Gold |
| Package Quantity | 1 |
