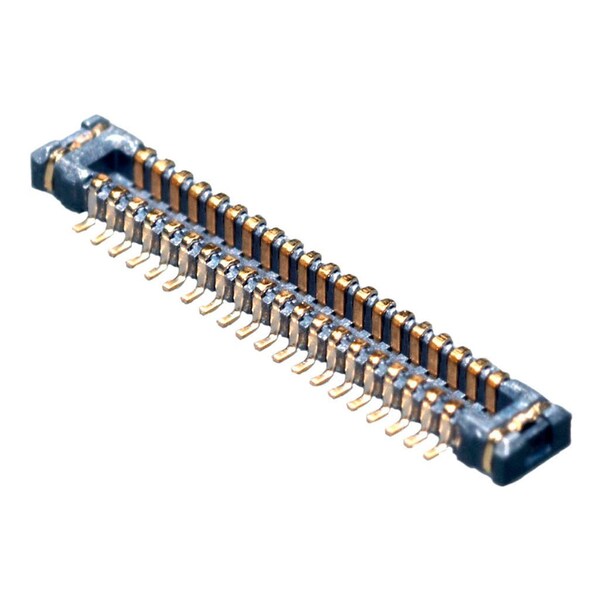

Conectores de placa a placa y para aplicaciones de mezanine Slimstack de 0.4mm, montaje en superficie, orientación vertical, con 80 pines.
| Item | Board-to-Board Connector |
|---|---|
| Material | Phosphor Bronze |
| Max. Voltage | 50V AC/DC |
| Application | Board-to-Board, Signal |
| Color | Black |
| Series | 502430 |
| Number of Rows | 2 |
| Current Rating | 0.3 A |
| Number of Contacts | 80 |
| Terminal Finish | Gold Plated |
| Max. Temp. | 85 deg C |
| Sub-Category | PCB Headers |
| Contact Finish | Gold Plated |
| Terminal Type | Surface Mount |
| Hole Center to Center | 0.4 mm |
| Voltage - Maximum | 50V AC (RMS)/DC |
| Current - Maximum per Contact | 0.3 A |
| Orientation | Vertical |
| PCB Locator | No |
| Glow-Wire Capable | No |
| Mated Height | 1 mm |
| Breakaway | No |
| Durability (mating cycles max) | 30 |
| Material - Plating Mating | Gold |
| Mated Width | 2.6 mm |
| Temperature Range - Operating | -40° to +85°C |
| PCB Retention | Yes |
| Polarized to Mating Part | No |
| Polarized to PCB | No |
| Pitch - Mating Interface | 0.4 mm |
| Component Type | PCB Header |
| Material - Plating Termination | Gold |
| Circuits (Loaded) | 80 |
| Product Name | SlimStack |
| Package Quantity | 1 |
