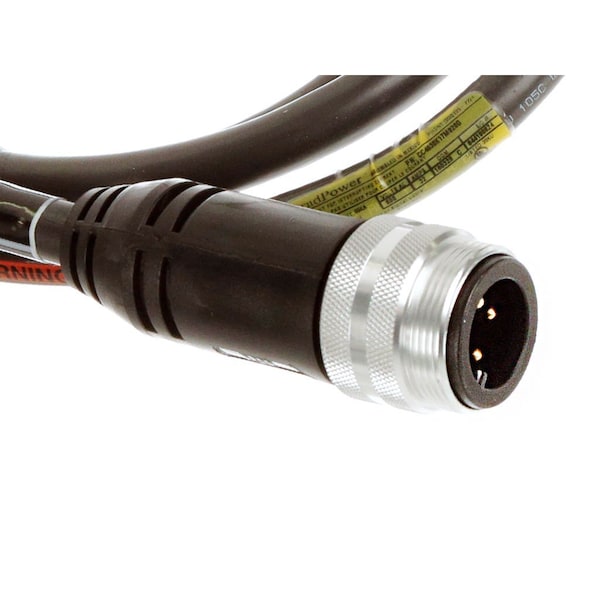

El conector BP D 4P M/MFE SK ST #10 BK TPE 23M de Molex es ideal para aplicaciones industriales y ofrece una alta fiabilidad y durabilidad.
| LED Indicator | No |
|---|---|
| Series | 130064 |
| Orientation | Straight to Straight |
| Material - Coupling Nut | Anodized Aluminum |
| Cable Diameter | 13.46mm (.530") |
| Temperature Range - Operating | -20° to +90°C |
| Gender | Female-Male |
| IP Rating | IP67 |
| Material - Cable Jacket | TPE |
| UL | E258922 |
| Type | Double Ended |
| Connector End B | BradPower D-Size |
| Coupling Style | Threaded |
| Cable Length | 23 m |
| Color - Cable Jacket | Black |
| Product Name | BradPower D-Size |
| Connector End A | BradPower D-Size (1 3/8"-M35) |
| Current - Maximum per Contact | 32 A |
| Poles | 4 |
| Wire Size (AWG) | 10 |
| Keyway | Single |
| Material - Plating Mating | Gold |
| Wire/Cable Type | TC-ER |
| Voltage - Maximum | 600V AC/DC |
| Material - Connector Body | TPE |
| Material - Contact | Copper Alloy |
| Package Quantity | 1 |
