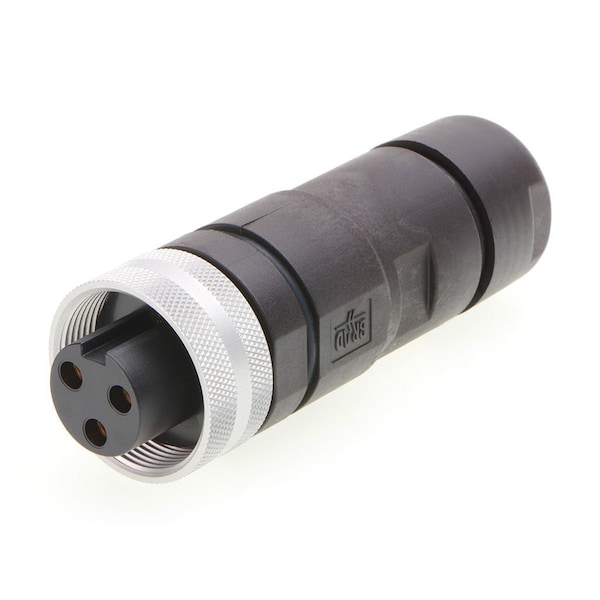

BP QC 3P FEMALE F-ATTACH STR
| Material - Connector Body | Nylon |
|---|---|
| Keyway | Single |
| Coupling Type | Internal Thread |
| Material - Plating Mating | Gold |
| Orientation | Straight |
| UL | E258922 |
| Gender | Female |
| Current - Maximum per Contact | 32 A |
| Voltage - Maximum | 600V AC/DC |
| Material - Coupling Nut | Anodized Aluminum |
| Poles | 3 pole |
| Wire Size AWG | 10, 12, 14, 8 |
| Temperature Range - Operating | -20°C to +90°C |
| Package Quantity | 1 |
