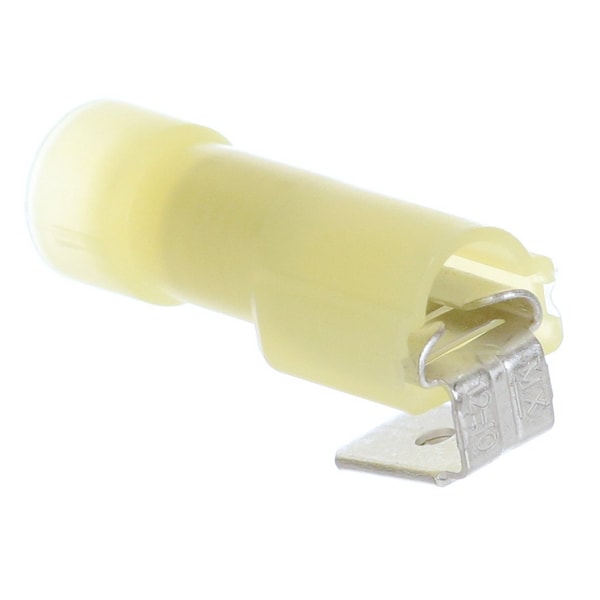

C-2319 12-10 PIGGYBACK TOTALMENTE AISLADO.
| Insulation | Nylon |
|---|---|
| Tab Width | 6.35 mm |
| Tab Thickness | 0.81 mm |
| Material - Plating Termination | Tin |
| Gender | Female |
| Wire Size AWG | 10, 12 |
| Flammability | 94V-2 |
| Temperature Range - Operating | 105°C |
| Material - Plating Mating | Tin |
| Voltage - Maximum | 600 V AC |
| CSA | LR18689 |
| Polarized to Mating Part | Yes |
| UL | E79133 |
| Wire Insulation Diameter | 7.03mm max. |
| Orientation | Straight |
| Material - Resin | Nylon |
| Barrel Type | Closed - Brazed |
| Material - Metal | Brass |
| Color - Resin | Yellow |
| Package Quantity | 1 |
