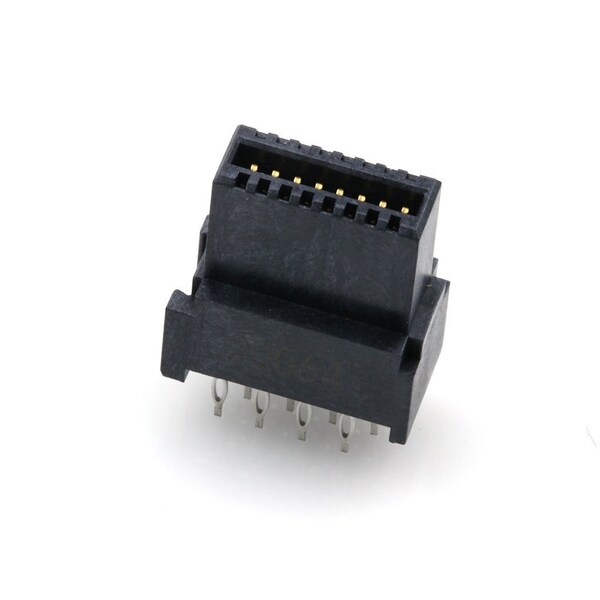

Conector de borde de tarjeta, 16 contactos, 2 filas, recto, paso de 0.05 pulgadas, terminal de ajuste por presión.
| Item | Power Connector |
|---|---|
| Color | Black |
| Max. Voltage | 250V AC/DC |
| Application | Board-to-Board, Signal |
| Series | 46113 |
| Standards | CSA Certified, UL E29179 |
| Sub-Category | PCB Receptacles |
| Terminal Type | Through Hole - Compliant Pin |
| Hole Center to Center | 1.27 mm |
| Material | High Temperature Thermoplastic |
| Features | Surface Mount Compatible |
| Max. Temp. | 105 deg C |
| Number of Contacts | 16 |
| Current Rating | 1 A |
| Terminal Finish | Tin Plated |
| Contact Plating Thickness | 0.762 µm |
| Number of Rows | 2 |
| Contact Finish | Gold Plated |
| Flammability Rating | UL 94V-0 |
| Package Quantity | 1 |
