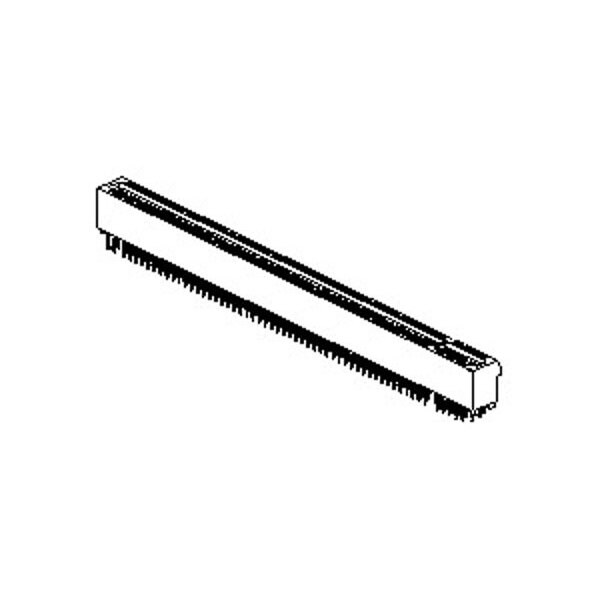

Conector de borde de tarjeta, 230 contactos, 2 filas, hembra, recto, terminal de soldadura.
| Series | 87715 |
|---|---|
| Circuits (Loaded) | 230 |
| Color - Resin | Black |
| Pitch - Mating Interface | 1 mm |
| Data Rate | 8 Gbps |
| Circuit Size Range | 201-294 Circuits |
| (p)ower-(s)ignal Configuration | 230s - 0p |
| Voltage - Maximum | 50V AC (RMS)/DC |
| Orientation | Vertical |
| PCB Locator | Yes |
| Product Name | Edge Card |
| Current - Maximum per Contact | 1.1 A |
| Material - Plating Mating | Gold |
| Polarized to Mating Part | Yes |
| CSA | LR19980 |
| Entry Angle | Vertical |
| Max-Cycle | 1 |
| High Power Bay (30.0A or more) | No |
| Temperature Range - Operating | 65°C |
| Material - Plating Termination | Tin-Lead |
| Component Type | Edgecard to PCB |
| PCB Thickness - Recommended | 2.4 mm |
| PC Tail Length | 3 mm |
| Edge Card Thickness | 1.57mm |
| Flammability | 94 V to 0 |
| Keying to Mating Part | Yes |
| Durability (mating cycles max) | 50 |
| Max-Duration | 10 |
| Termination Interface Style | Through Hole |
| PCB Retention | Yes |
| Plating min - Mating | 0.381 um |
| Max-Temp | 260 |
| Package Quantity | 1 |
