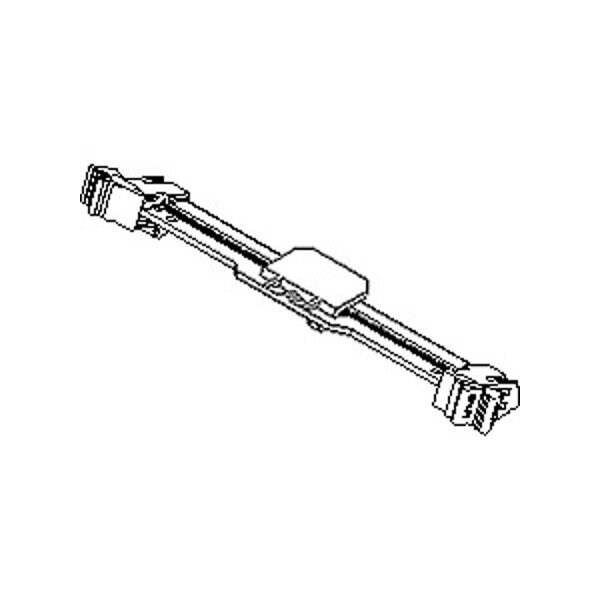

Conector de borde de tarjeta, 244 contactos, 2 filas, 22.5 grados, paso de 0.024 pulgadas, montaje en superficie.
| Color | Black |
|---|---|
| Max. Voltage | 30 V |
| Standards | CSA Certified, UL E29179 |
| Material | High Temperature Thermoplastic |
| Hole Center to Center | 0.6 mm |
| Max. Temp. | 260 deg C |
| Terminal Type | Surface Mount |
| Flammability Rating | UL 94V-0 |
| Terminal Finish | Tin Plated |
| Contact Plating Thickness | 0.762 µm |
| Contact Finish | Gold Plated |
| Number of Contacts | 244 |
| Current Rating | 1 A |
| Package Quantity | 1 |
