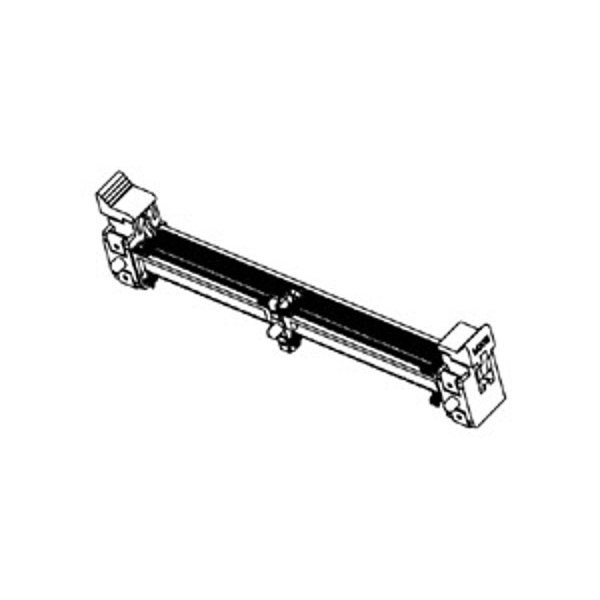

Card Edge Connector, 244 Contact(S), 2 Row(S), Female, Right Angle, Surface Mount Terminal
| Color | Black |
|---|---|
| Maximum Voltage | 30 V |
| Maximum Operating Temperature | 260 deg C |
| UL 94 Flammability Rating | V-0 |
| Standards | CSA Certified; UL E29179 |
| Series | 87918 |
| Material | Thermoplastic |
| Max. Temp. | 260 deg C |
| Terminal Type | Surface Mount |
| Contact Finish | Gold Plated |
| Max. Voltage | 30 V |
| Hole Center to Center | 0.6 mm |
| Number of Contacts | 244 |
| Current Rating | 1 A |
| Contact Plating Thickness | 0.762 um |
| Flammability Rating | UL 94V-0 |
| Terminal Finish | Tin Plated |
| Pitch - Mating Interface | 0.6 mm |
| Max-Temp | 260 |
| Max-Duration | 10 |
| Component Type | Socket |
| Material - Plating Termination | Tin |
| PCB Locator | Yes |
| Max-Cycle | 2 |
| Keying to Mating Part | Yes |
| Product Name | MiniDIMM |
| Material - Metal | Alloy |
| UL | E29179 |
| Current - Maximum per Contact | 1 A |
| Voltage Key | 1.5 V |
| Entry Angle | 90° Angle |
| Plating min - Mating | 0.762 um |
| Latch Color | Natural (Off-White) |
| PCB Thickness - Recommended | 1.57mm |
| Temperature Range - Operating | -55 to 85 deg C |
| Material - Resin | High Temperature Thermoplastic |
| Durability (mating cycles max) | 25 |
| CSA | LR19980 |
| Circuits (Loaded) | 244 |
| JEDEC Outline | MO-244 |
| Flammability | 94V-0 |
| Material - Plating Mating | Gold |
| PCB Retention | Yes |
| Country of Origin (subject to change) | Singapore |
| Package Quantity | 1 |
