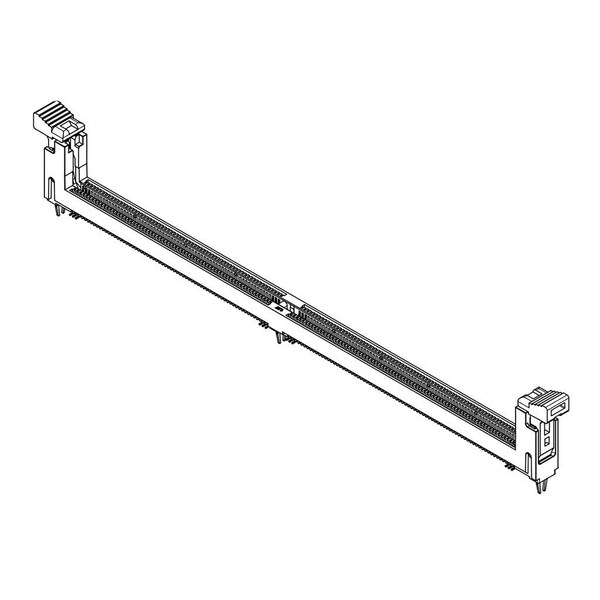

Card Edge Connector, 288 Contact(S), 2 Row(S), Female, Straight, 0.033 Inch Pitch, Surface Mount
| Color | Black |
|---|---|
| Insulation Material | Nylon |
| Maximum Voltage | 29 V |
| Current | 0.75 A |
| Minimum Operating Temperature | -55 Degrees C |
| Maximum Operating Temperature | 260 deg C |
| UL 94 Flammability Rating | V-0 |
| Series | 78730 |
| Standards | CSA Certified; UL E29179 |
| Material | Nylon |
| Hole Center to Center | 0.85 mm |
| Number of Contacts | 288 |
| Contact Finish | Gold Plated |
| Max. Temp. | 260 deg C |
| Terminal Type | Surface Mount |
| Current Rating | 0.75 A |
| Max. Voltage | 29V AC/DC |
| Contact Plating Thickness | 0.762 um |
| Flammability Rating | UL 94V-0 |
| Terminal Finish | Tin Plated |
| Max-Duration | 10 |
| Temperature Range - Operating | -55 to 85 deg C |
| Product Name | DDR4 DIMM |
| PCB Thickness - Recommended | 1.57mm, 3.18mm |
| Material - Resin | Nylon |
| PCB Retention | Yes |
| JEDEC Outline | MO-309 |
| Circuits (Loaded) | 288 |
| Component Type | Socket |
| Material - Metal | Alloy |
| Plating min - Mating | 0.762 um |
| Voltage - Maximum | 29V AC (RMS)/DC |
| PCB Locator | Yes |
| Durability (mating cycles max) | 25 |
| Max-Cycle | 3 |
| Pitch - Mating Interface | 0.85 mm |
| Keying to Mating Part | None |
| CSA | 1,409,726 |
| Material - Plating Termination | Tin |
| Material - Plating Mating | Gold |
| Entry Angle | Vertical |
| UL | E29179 |
| Flammability | 94V-0 |
| Max-Temp | 260 |
| Current - Maximum per Contact | 0.75 A |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
