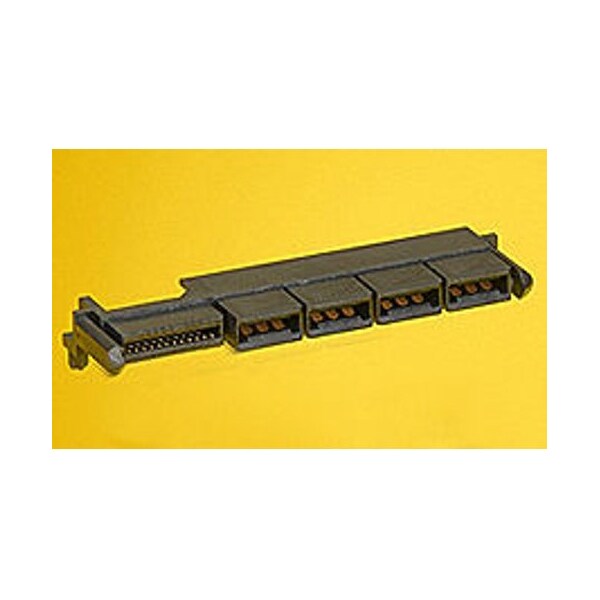

Conector de borde de tarjeta, 40 contactos, macho, ángulo recto, terminal de soldadura, bloqueo, aislante negro.
| Color | Black |
|---|---|
| Item | Power Connector |
| Max. Voltage | 250 V AC |
| Application | Power, Board to-Board |
| Series | 45984 |
| Standards | CSA Certified, UL E29179 |
| Max. Temp. | 260 deg C |
| Features | Surface Mount Compatible |
| Material | High Temperature Thermoplastic |
| Hole Center to Center | 1.27 mm, 12 mm |
| Sub-Category | PCB Receptacles |
| Terminal Type | Through Hole |
| Number of Rows | 2 |
| Contact Finish | Gold Plated |
| Current Rating | 30 A |
| Contact Plating Thickness | 0.762 µm |
| Number of Contacts | 40 |
| Terminal Finish | Tin Plated |
| Flammability Rating | UL 94V-0 |
| Package Quantity | 1 |
