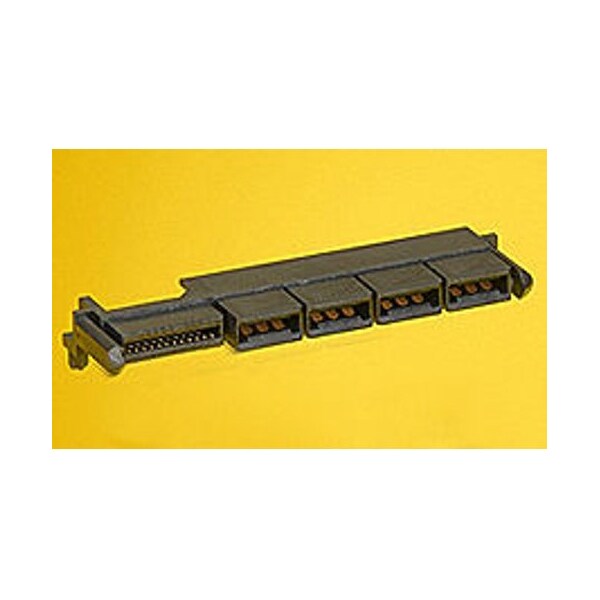

Card Edge Connector, Male, Right Angle, Solder Terminal, Locking, Black Insulator, Receptacle
| Item | Power Connector |
|---|---|
| Color | Black |
| Max. Voltage | 250 V AC |
| Application | Power, Board to-Board |
| Series | 45984 |
| Standards | CSA Certified, UL E29179 |
| Max. Temp. | 260 deg C |
| Hole Center to Center | 1.27 mm, 12 mm |
| Terminal Type | Through Hole |
| Features | Surface Mount Compatible |
| Material | High Temperature Thermoplastic |
| Sub-Category | PCB Receptacles |
| Terminal Finish | Tin Plated |
| Flammability Rating | UL 94V-0 |
| Number of Contacts | 32 |
| Contact Plating Thickness | 0.762 µm |
| Number of Rows | 2 |
| Current Rating | 30 A |
| Contact Finish | Gold Plated |
| PC Tail Length | 3.6 mm |
| Pitch - Mating Interface | 1.27 mm, 12 mm |
| Component Type | PCB Receptacle |
| Temperature Range - Operating | -40° to +105°C |
| Circuits (Loaded) | 32 |
| Material - Resin | High Temperature Thermoplastic |
| Plating min - Mating | 0.762 um |
| Polarized to Mating Part | Yes |
| Material - Plating Termination | Tin |
| Durability (mating cycles max) | 250 |
| PCB Retention | None |
| PCB Thickness - Recommended | 2.36 mm |
| Glow-Wire Capable | No |
| PCB Locator | No |
| Current - Maximum per Contact | 30 A |
| Grounding to PCB | No |
| Orientation | Right Angle |
| Flammability | 94 V to 0 |
| Guide to Mating Part | No |
| Material - Plating Mating | Gold |
| Material - Metal | High Performance Alloy |
| Stackable | No |
| (p)ower-(s)ignal Configuration | 4p - 28s |
| CSA | LR19980 |
| UL | E29179 |
| Keying to Mating Part | Yes |
| Product Name | EXTreme LPHPower |
| Max-Cycle | 3 |
| Max-Temp | 260 |
| Polarized to PCB | Yes |
| Lock to Mating Part | No |
| Max-Duration | 20 |
| Package Quantity | 1 |
