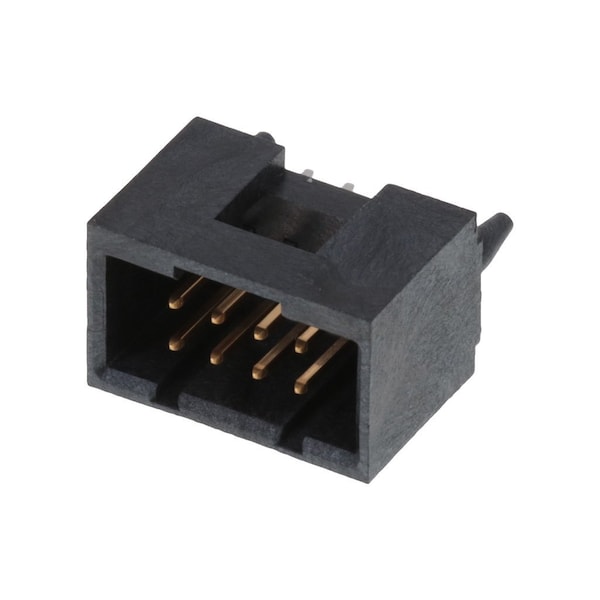

CGrid VT Shrd Hdr wPg 15SAu 8Ckt
| Application | Signal, Wire-to-Board |
|---|---|
| UL | E29179 |
| Orientation | Vertical |
| Color - Resin | Black |
| Pitch - Termination Interface | 2.54 mm |
| CSA | LR19980 |
| Plating min - Mating | 0.381µm |
| Material - Resin | High Temperature Thermoplastic |
| Current - Maximum per Contact | 2.5 A |
| Number of Rows | 2 |
| Flammability | 94V-0 |
| Process Temperature max. C | 245 |
| Voltage - Maximum | 250 V |
| PCB Thickness - Recommended | 2.4 mm |
| Series | 70568 |
| Pitch - Mating Interface | 2.54 mm |
| Product Name | C-Grid |
| Shrouded | Fully |
| Circuits (maximum) | 8 |
| Material - Plating Mating | Gold |
| Lock to Mating Part | Yes |
| PC Tail Length | 3.3 mm |
| Circuits (Loaded) | 8 |
| Material - Metal | Brass, Phosphor Bronze |
| Duration at Max. Process Temperature (seconds) | 5 |
| Polarized to PCB | Yes |
| Polarized to Mating Part | Yes |
| Termination Interface: Style | Through Hole |
| PCB Retention | Yes |
| Max. Cycles at Max. Process Temperature | 1 |
| Temperature Range - Operating | -55° to +105°C |
| Package Quantity | 1 |
