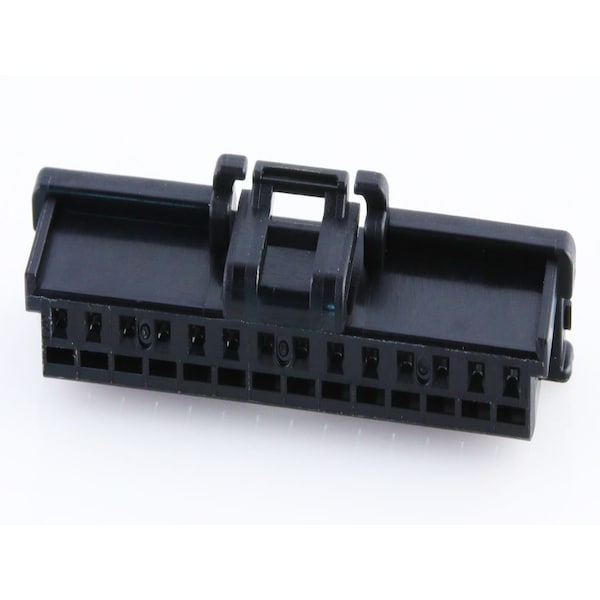

Combination Line Connector, 14 Contact(S), Female, Crimp Terminal, Receptacle
| Color | Black |
|---|---|
| Number of Rows | 1 |
| Series | 505151 |
| Application | Automotive, Signal, Wire-to-Board |
| Material | Alloy |
| Number of Ports | 1 |
| Max. Temp. | 125 deg C |
| Standards | UL E29179 |
| Hole Center to Center | 2 mm |
| Connector Type | Receptacle |
| Number of Contacts | 14 |
| Flammability Rating | SC-0 |
| Glow-Wire Capable | No |
| UL | E29179 |
| Material - Resin | Alloy |
| Stackable | No |
| Pitch - Mating Interface | 2 mm |
| Lock to Mating Part | Yes |
| Keying to Mating Part | None |
| Product Name | DuraClik |
| Circuits (maximum) | 14 |
| Temperature Range - Operating | -40° to +125°C |
| Polarized to Mating Part | Yes |
| Flammability | 94V-2 |
| Package Quantity | 1 |
