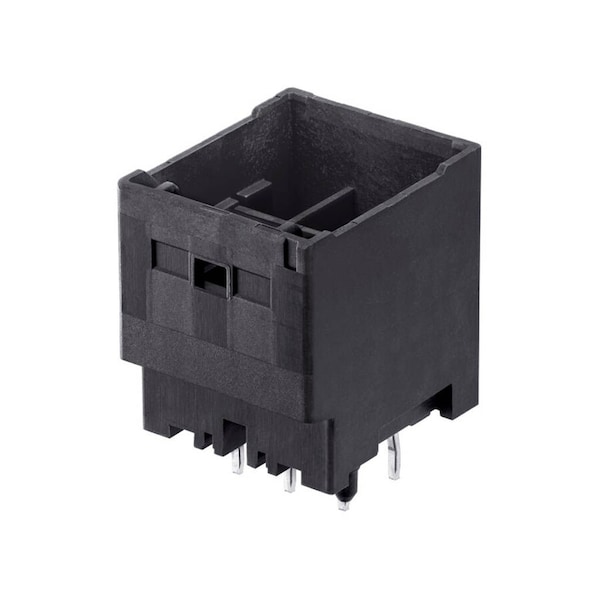

Cp-3.3 Header, 3.30Mm Pitch, Dual Row, Vertical, Polarized, Positive Lock
| Color | Black |
|---|---|
| Number of Rows | 2 |
| Series | 212210 |
| Max. Voltage | 500V AC/DC |
| Application | Power, Wire to-Board |
| Standards | UL E29179 |
| Hole Center to Center | 3.3 mm |
| Max. Temp. | 105 deg C |
| Current Rating | 8.5 A |
| Material | Polyamide |
| Features | Glow-Wire Capable |
| Terminal Type | Through Hole |
| Terminal Finish | Matte Tin Plated |
| Contact Finish | Matte Tin Plated |
| Flammability Rating | UL 94V-0 |
| Number of Contacts | 6 |
| Orientation | Vertical |
| Product Name | CP-3.3 |
| Temperature Range - Operating | -40° to +105°C |
| Pitch - Mating Interface | 3.3 mm |
| Component Type | PCB Header |
| Material - Plating Termination | Matte Tin |
| Polarized to Mating Part | Yes |
| Glow-Wire Capable | Yes |
| UL | E29179 |
| Circuits (Loaded) | 6 |
| Current - Maximum per Contact | 8.5 A |
| Keying to Mating Part | Yes |
| Material - Resin | Polyamide |
| PC Tail Length | 3.35 mm |
| Flammability | 94V-0 |
| Breakaway | No |
| Material - Metal | Alloy |
| First Mate / Last Break | No |
| PCB Locator | Yes |
| Material - Plating Mating | Matte Tin |
| PCB Retention | Yes |
| Guide to Mating Part | No |
| Lock to Mating Part | Yes |
| Polarized to PCB | Yes |
| PCB Thickness - Recommended | 1.6 mm |
| Package Quantity | 1 |
