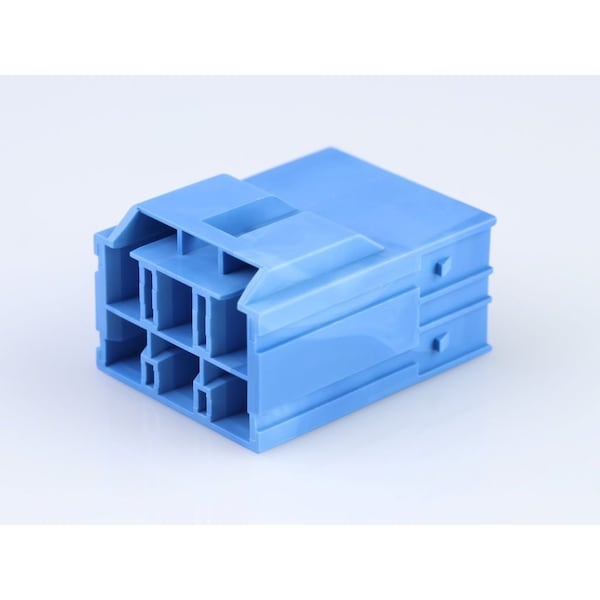

Cp-6.5 Plug Housing, 6.50Mm Pitch, Dual Row, 6 Circuits, Blue, Glow-Wire Capable
| Color | Blue |
|---|---|
| Number of Rows | 2 |
| Series | 203438 |
| Application | Power, Wire-to-Wire |
| Features | Glow-Wire Capable |
| Max. Temp. | 105 deg C |
| Connector Type | Plug |
| Material | Nylon |
| Hole Center to Center | 6.5 mm |
| Standards | UL E29179 |
| Flammability Rating | UL 94V-0 |
| Number of Contacts | 6 |
| Product Name | CP-6.5 |
| Circuits (maximum) | 6 |
| Lock to Mating Part | Yes |
| Polarized to Mating Part | Yes |
| Glow-Wire Capable | Yes |
| Keying to Mating Part | Yes |
| Material - Resin | Nylon |
| UL | E29179 |
| CSA | LR19980 |
| Pitch - Mating Interface | 6.5 mm |
| Temperature Range - Operating | -40° to +105°C |
| Package Quantity | 1 |
