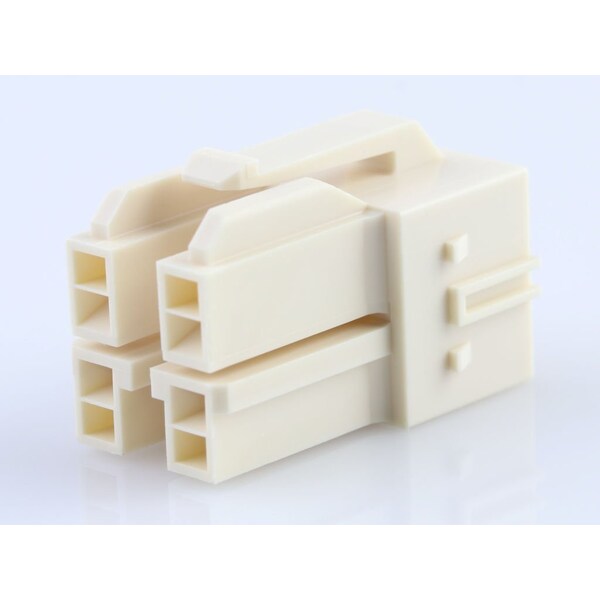

Cubierta de conector CP-6.5, resistente a la ignición, paso de 6.50mm, doble fila, 4 circuitos, color natural.
| Color | Natural |
|---|---|
| Number of Rows | 2 |
| Series | 151207 |
| Application | Power, Wire-to-Wire, Wire-to-Board |
| Max. Temp. | 105 deg C |
| Connector Type | Receptacle |
| Material | Nylon |
| Standards | CSA Certified, UL E29179 |
| Hole Center to Center | 6.5 mm |
| Features | Glow-Wire Capable |
| Number of Contacts | 4 |
| Flammability Rating | UL 94V-0 |
| CSA | LR19980 |
| Material - Resin | Nylon |
| Temperature Range - Operating | -40° to +105°C |
| Circuits (maximum) | 4 |
| Keying to Mating Part | Yes |
| Product Name | CP-6.5 |
| UL | E29179 |
| Flammability | 94V-0 |
| Pitch - Mating Interface | 6.5 mm |
| Color - Resin | Natural |
| Glow-Wire Capable | Yes |
| Polarized to Mating Part | Yes |
| Lock to Mating Part | Yes |
| Package Quantity | 1 |
