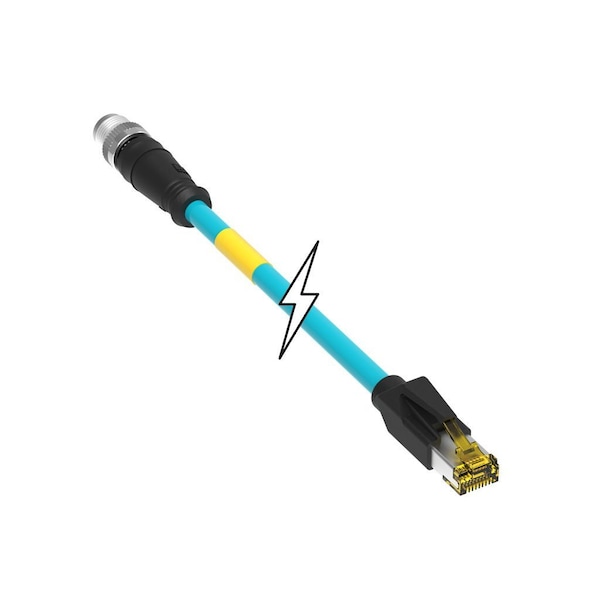

Cable de red Molex CSE M12 CAT6A RJ45 8P XC MA STR PUR de 30 metros de longitud. Conectores de alta calidad para una transmisión de datos rápida y estable.
| Gender | Male-Male |
|---|---|
| Material - Plating Mating | Gold |
| Color - Cable Jacket | Blue |
| Voltage - Maximum | 48 V |
| Coupling Style | Threaded |
| Temperature Range - Operating | -40°C to +70°C |
| Current - Maximum per Contact | 0.5 A |
| Keyway | X-coded |
| Wire/Cable Type | Shielded PUR |
| Poles | 8 |
| Material - Coupling Nut | Nickel-plated Brass |
| Wire Size AWG | 26 |
| Material - Connector Body | PUR |
| Cable Length | 30 m |
| Cable Diameter | 6.40mm (.252") |
| Orientation | Straight to Straight |
| Material - Cable Jacket | PUR |
| Series | 120341 |
| UL | E361772 |
| Connector End B | RJ-45 |
| Material - Contact | Brass |
| Performance Category | 6A |
| Protocol | EtherNet |
| LED Indicator | No |
| Type | Double Ended |
| Product Name | Micro-Change Cat6A,RJ45,Industrial Ethernet |
| IP Rating | IP67, IP20 |
| Connector End A | Micro-Change (M12) |
| Package Quantity | 1 |
