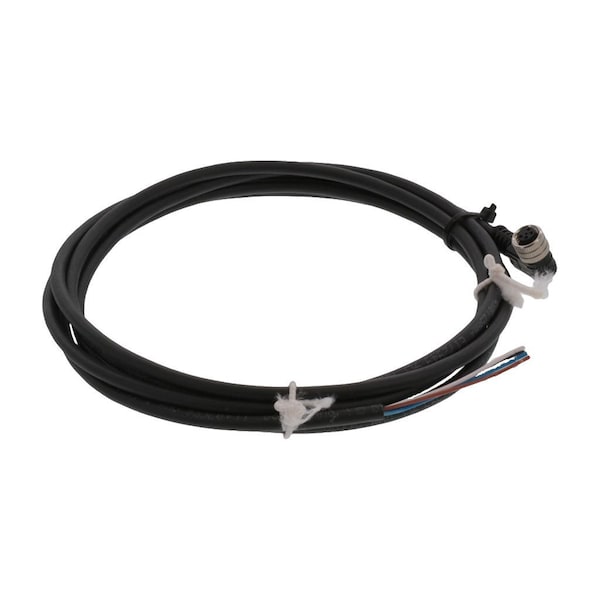

CSE M8 4P AC FE RA WSOR 10M
| Cable Length | 10 m |
|---|---|
| Poles | 4 |
| Color - Cable Jacket | Black |
| Material - Cable Jacket | TPU |
| Current - Maximum per Contact | 3 A |
| Material - Coupling Nut | Nickel-plated Brass |
| Gender | Female-Pigtail |
| Orientation | 90° to Pigtail |
| Material - Connector Body | TPU |
| Material - Plating Mating | Gold |
| Cable Diameter | 4.80mm (.189") |
| Coupling Style | Knurled Hexnut, Threaded |
| Wire/Cable Type | WSOR |
| Wire Size AWG | 24 |
| Voltage - Maximum | 30 V |
| Temperature Range - Operating | -25°C to +85°C |
| Keyway | Single |
| Connector End A | Nano-Change (M8) |
| Connector End B | Pigtail |
| LED Indicator | No |
| Material - Contact | Brass |
| Material - O-Ring | Fluoro-elastomer |
| Type | Single Ended |
| Series | 120086 |
| IP Rating | IP67 |
| Product Name | Nano-Change |
| Package Quantity | 1 |
