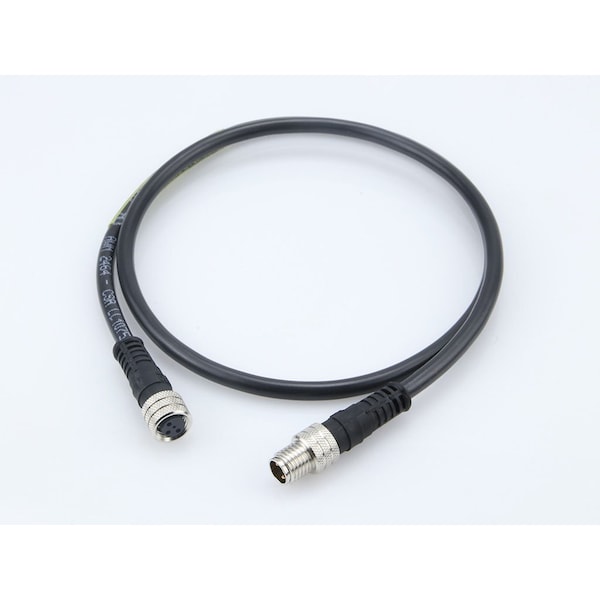

CSE M8 M8 3P AC FE STR WSOR MA STR 0.6M
| Material - Connector Body | TPU |
|---|---|
| Material - Coupling Nut | Nickel-plated Brass |
| Material - Cable Jacket | TPU |
| Cable Diameter | 4.50mm (.177") |
| Voltage - Maximum | 60 V |
| Color - Cable Jacket | Black |
| Coupling Style | Knurled Hexnut, Threaded |
| Wire Size AWG | 24 |
| Cable Length | 0.6 m |
| Keyway | Single |
| Wire/Cable Type | WSOR |
| Temperature Range - Operating | -25°C to +85°C |
| Orientation | Straight to Straight |
| Gender | Female-Male |
| Current - Maximum per Contact | 3 A |
| UL | E152210 |
| Poles | 3 pole |
| Material - Plating Mating | Gold |
| Connector End A | Nano-Change (M8) |
| Series | 120087 |
| Connector End B | Nano-Change |
| Type | Double Ended |
| Material - O-Ring | Fluoro-elastomer |
| Product Name | Nano-Change |
| Material - Contact | Brass |
| IP Rating | IP67 |
| LED Indicator | No |
| Package Quantity | 1 |
