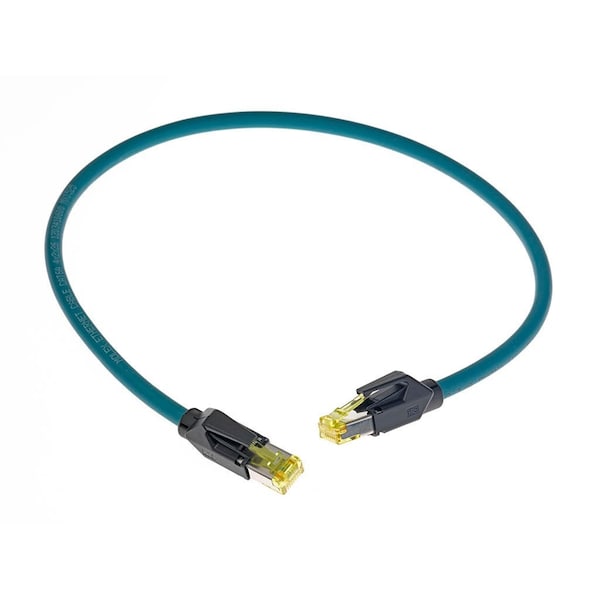

CSE RJ45 CAT6A 8P 0C FE STR PUR 1M
| Temperature Range - Operating | -20° to +80°C |
|---|---|
| Material - Cable Jacket | PUR |
| Wire Size (AWG) | 26 |
| Cable Length | 1 m |
| Material - Contact | Phosphor Bronze |
| Voltage - Maximum | 30V AC (RMS) / 42V DC |
| Performance Category | 6A |
| Series | 120341 |
| Coupling Style | Latch, Push |
| Cable Diameter | 6.90mm (.272") |
| Material - Connector Body | TPU |
| Type | Double Ended |
| Poles | 8 |
| Orientation | Straight to Straight |
| UL | E361772 |
| Material - Plating Mating | Gold |
| Connector End B | RJ-45 |
| Wire/Cable Type | Shielded PUR |
| IP Rating | IP20 |
| Gender | Male-Male |
| Product Name | Industrial Ethernet, RJ45 |
| Color - Cable Jacket | Green |
| Current - Maximum per Contact | 0.5 A |
| Connector End A | RJ-45 (standard) |
| LED Indicator | No |
| Package Quantity | 1 |
