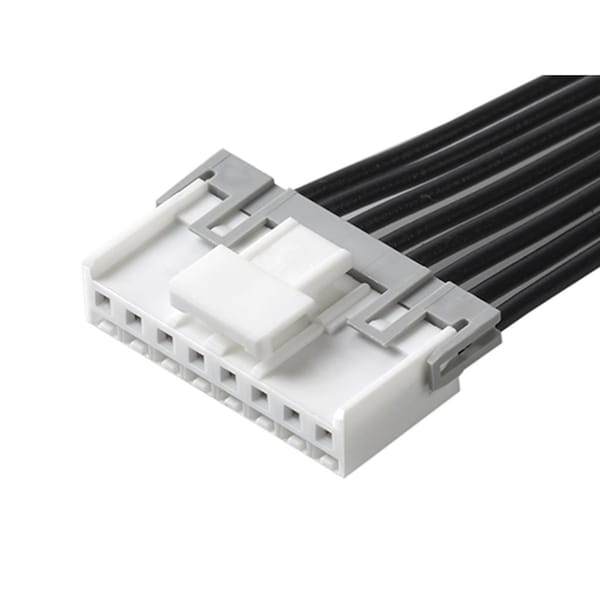

Dc Power Cords Mini-Lock Cbl 2.5Mm P F-F 300Mm 8Ckts
| Color | Natural |
|---|---|
| Series | 15137 |
| Max. Voltage | 250V AC/DC |
| Application | Signal, Wire-to-Board |
| Length | 300 mm |
| Connector Type | Female-Female |
| Material | Polyester |
| Type | Discrete Wire Assembly |
| Number of Rows | 1 |
| Number of Contacts | 8 |
| Wire Range | 22 AWG |
| Contact Finish | Matte Tin Plated |
| Hole Center to Center | 2.5 mm |
| Terminal Type | Crimp, Compression |
| Contact Plating Thickness | 0.889 µm |
| Terminal Finish | Matte Tin Plated |
| Material - Plating Termination | Matte Tin |
| Wire Size (AWG) | 22 |
| Overmolded | No |
| Pitch - Mating Interface | 2.5 mm |
| Single Ended | No |
| Material - Metal | Alloy |
| Product Name | Mini-Lock |
| Assembly Configuration | Dual Ended Connectors |
| Cable Length | 300 mm |
| Circuits (Loaded) | 8 |
| Voltage - Maximum | 250V AC (RMS)/DC |
| Connector to Connector | Mini-Lock-to-Mini-Lock |
| Plating min - Mating | 0.889 um |
| Material - Plating Mating | Matte Tin |
| Material - Resin | Polyester |
| Wire/Cable Type | UL 1061 |
| Current - Maximum per Contact | 3.5 A |
| Package Quantity | 1 |
