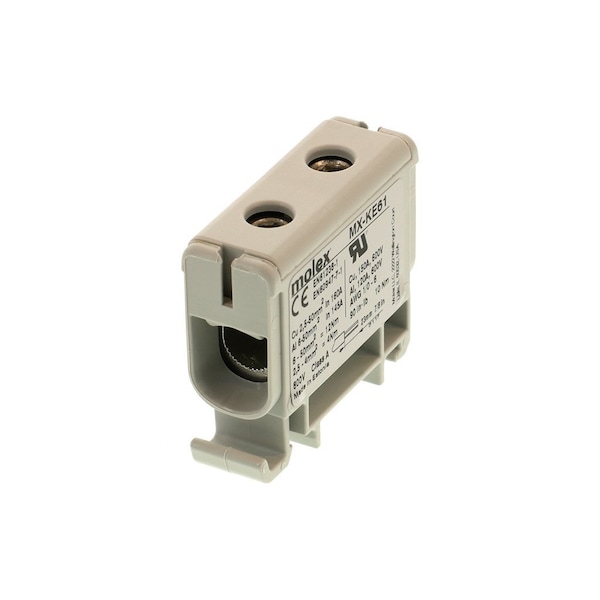

Din Rail Terminal Blocks Hc Unvclp 150A 1Ckt Gry/Gry 600V
| Type | Universal Clamp |
|---|---|
| Application | Wire-to-Wire |
| Wire Size AWG | 1/0-6, 6+6, 8+8+8 |
| Material - Metal | Aluminum |
| Orientation | Vertical |
| Entry Angle | Horizontal |
| Temperature Range - Operating | -40° to +105°C |
| Stackable | No |
| Current - Maximum per Contact | 150 A |
| Lock to Mating Part | None |
| Panel Mount | No |
| UL | E48521 |
| Termination Interface: Style | Screw |
| Material - Plating Termination | Tin |
| Circuits (Loaded) | 1 |
| Number of Rows | 1 |
| Wire Size mm² | 13.00+13.00, 13.00-53.00, 8.30+8.30+8.30 |
| Color - Resin | Gray |
| Material - Resin | Polyamide |
| Material - Plating Mating | Tin |
| Voltage - Maximum | 600 V |
| Product Name | Universal Clamp |
| Component Type | One Piece |
| Series | 201606 |
| Package Quantity | 1 |
