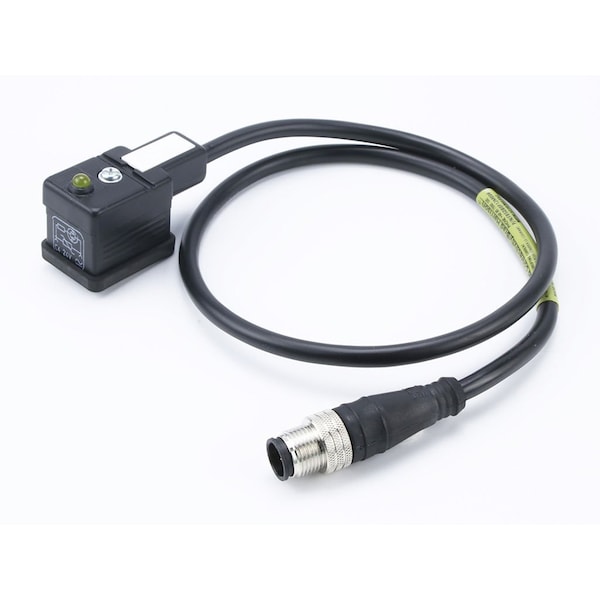

DIN/MMC-5P-24V-MM-ST-0.6M-PUR
| Color | Black |
|---|---|
| Series | 121036 |
| Max. Voltage | 24 V |
| Length | 1.97 ft |
| Wire Range | 22 AWG |
| Connector Type | Male-Male |
| IP Rating | IP65 |
| Max. Temp. | 75 deg C |
| Material | Polypropylene |
| Type | Double Ended |
| Current Rating | 1.5 A |
| Contact Finish | Gold Plated |
| Material - Contact | Copper Alloy |
| Material - Cable Jacket | PUR |
| Material - Coupling Nut | Nickel-plated Brass |
| LED Indicator | Yellow |
| Wire Size (AWG) | 20 |
| Connector End B | Micro-Change |
| Material - Plating Mating | Gold |
| Temperature Range - Operating | -25° to +75°C |
| Wire/Cable Type | PUR |
| Connector End A | Brad mPm DIN B - 10mm |
| Keyway | Single |
| Poles | 5 |
| Cable Length | 0.6 m |
| Orientation | 90° to Straight |
| Current - Maximum per Contact | 1.5 A |
| Product Name | Micro-Change, mPm |
| Cable Diameter | 5.72mm (.225") |
| Coupling Style | Threaded |
| Package Quantity | 1 |
