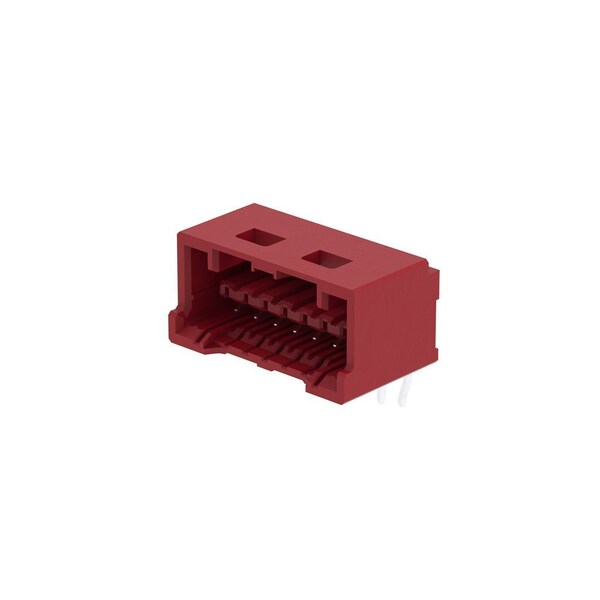

Dip Connector, 3 Contact(S), 2 Row(S), Female, Right Angle, 0.059 Inch Pitch, Solder Terminal,
| Color | Red |
|---|---|
| Max. Voltage | 100 V |
| Application | Signal, Wire-to-Board |
| Series | 503175 |
| Hole Center to Center | 1.5 mm |
| Terminal Type | Through Hole |
| Max. Temp. | 105 deg C |
| Material | Alloy |
| Contact Finish | Tin Plated |
| Number of Contacts | 3 |
| Current Rating | 2 A |
| Number of Rows | 1 |
| Terminal Finish | Tin Plated |
| PCB Retention | Yes |
| Polarized to Mating Part | Yes |
| Circuits (Loaded) | 3 |
| Guide to Mating Part | Yes |
| Product Name | CLIK-Mate |
| Orientation | Right Angle |
| Lock to Mating Part | Yes |
| Glow-Wire Capable | No |
| Stackable | No |
| Current - Maximum per Contact | 2 A |
| Temperature Range - Operating | -40° to +105°C |
| PCB Thickness - Recommended | 1.6 mm, 2.4 mm |
| Material - Plating Mating | Tin |
| Polarized to PCB | Yes |
| Material - Plating Termination | Tin |
| Pitch - Mating Interface | 1.5 mm |
| Keying to Mating Part | None |
| Component Type | PCB Receptacle |
| PCB Locator | Yes |
| Durability (mating cycles max) | 30 |
| Package Quantity | 1 |
