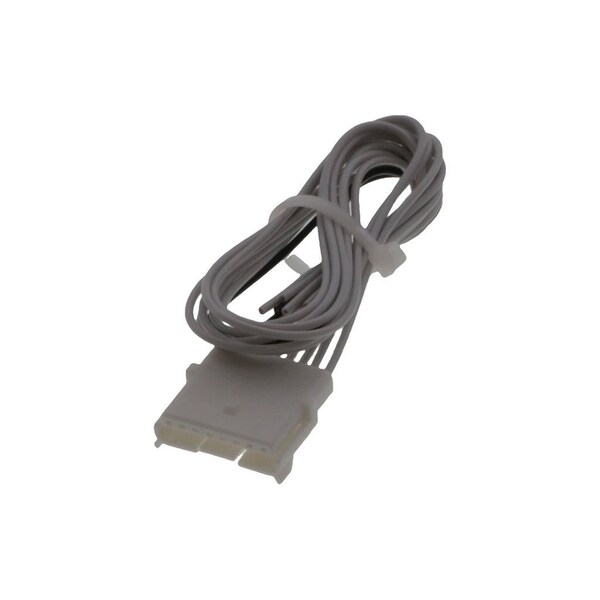

Ditto Wire-To-Wire Interconnects, Single-Ended Pigtail Harness, 2.50Mm Pitch
| Color | White |
|---|---|
| Min. Single Wire Size | 26 AWG |
| Max. Single Wire Size | 20 AWG |
| Series | 150207 |
| Max. Voltage | 350 V AC |
| Application | Power, Wire-to-Wire |
| Length | 0.3 m |
| Connector Type | Hermaphroditic |
| Material | Nylon |
| Current Rating | 8 A |
| Number of Contacts | 8 |
| Contact Finish | Tin Plated |
| Type | Discrete Wire Assembly |
| Hole Center to Center | 2.5 mm |
| Number of Rows | 1 |
| Features | Single Ended |
| Terminal Finish | Tin Plated |
| Current - Maximum per Contact | 8 A |
| Lock to Mating Part | No |
| Circuits (Loaded) | 8 |
| Material - Resin | Nylon |
| Connector to Connector | Ditto-to-Pigtail |
| Overmolded | No |
| Material - Plating Termination | Tin |
| Termination Interface Style | Compression, Crimp |
| Assembly Configuration | Single Ended Connector |
| Material - Plating Mating | Tin |
| Product Name | Ditto |
| Cable Length | 0.3 m |
| Single Ended | Yes |
| Wire Size (AWG) | 20, 22, 24, 26 |
| Pitch - Mating Interface | 2.5 mm |
| Material - Metal | Alloy |
| Wire/Cable Type | UL 1061 |
| Package Quantity | 1 |
