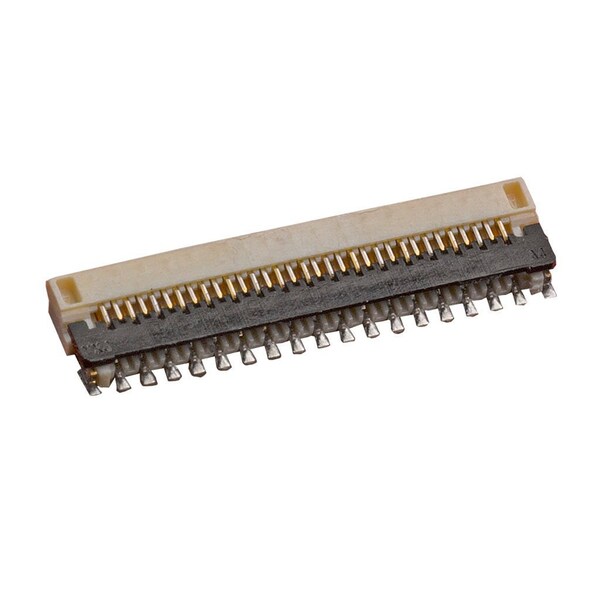

Easy-On Fpc Connector, 0.30Mm Pitch, Right-Angle, Bottom Contact, 0.95Mm Height
| Color | Natural |
|---|---|
| Item | FFC FPC Connector |
| Max. Voltage | 50 V |
| Series | 503566 |
| Material | Liquid Crystal Polymer |
| Max. Temp. | 105 deg C |
| Features | Surface Mount Compatible |
| Sub-Category | Connectors |
| Hole Center to Center | 0.3 mm |
| Number of Contacts | 39 |
| Contact Finish | Gold |
| Number of Rows | 1 |
| Current Rating | 0.2 A |
| Polarized to PCB | Yes |
| Material - Plating Mating | Gold |
| PCB Retention | None |
| Product Name | Easy-On |
| Durability (mating cycles max) | 10 |
| Actuator Type | Front Flip |
| Material - Plating Termination | Gold |
| Stackable | No |
| Contact Position | Bottom |
| Mated Height | 0.95 mm |
| Pitch - Mating Interface | 0.3 mm |
| Temperature Range - Operating | -40° to +105°C |
| Circuits (Loaded) | 39 |
| Material - Resin | Liquid Crystal Polymer |
| Current - Maximum per Contact | 0.3 A |
| PCB Locator | No |
| Orientation | Right Angle |
| PCB Mounting | Surface Mount |
| Material - Metal | Phosphor Bronze |
| Wire/Cable Type | FPC only |
| Package Quantity | 1 |
