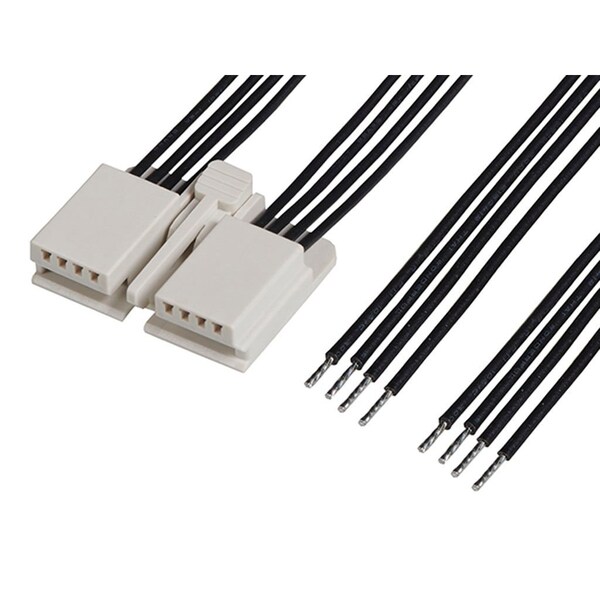

Edgelock-To-Pigtail Off-The-Shelf (Ots) Cable Assembly, 2.00Mm Pitch, Tin (Sn) Plating
| Color | Black |
|---|---|
| Series | 216331 |
| Max. Voltage | 125 V |
| Application | Signal, Wire-to-Board |
| Length | 100 mm |
| Material | Nylon |
| Terminal Type | Crimp |
| Features | Single Ended |
| Number of Rows | 1 |
| Contact Finish | Tin Plated |
| Number of Contacts | 8 |
| Type | Discrete Wire Assembly |
| Hole Center to Center | 2 mm |
| Current Rating | 3 A |
| Max. Insulation Dia. | 1.4 mm |
| Wire Range | 22 AWG |
| Contact Plating Thickness | 1 um |
| Terminal Finish | Tin Plated |
| Product Name | EdgeLock |
| Wire Size (AWG) | 22 |
| Connector to Connector | Edgelock-to-Pigtail |
| Cable Length | 100 mm |
| Material - Plating Termination | Tin |
| Material - Plating Mating | Tin |
| Single Ended | Yes |
| Wire Insulation Diameter | 1.10-1.40mm |
| Circuits (Loaded) | 8 |
| Overmolded | No |
| Pitch - Mating Interface | 2 mm |
| Plating min - Mating | 1 um |
| Wire/Cable Type | UL 10002 |
| Termination Interface Style | Crimp or Compression, Straddle Mount-Edge Card |
| Current - Maximum per Contact | 3 A |
| Material - Resin | Nylon |
| Material - Metal | Phosphor Bronze |
| Assembly Configuration | Single Ended Connector |
| Country of Origin (subject to change) | India |
| Package Quantity | 1 |
