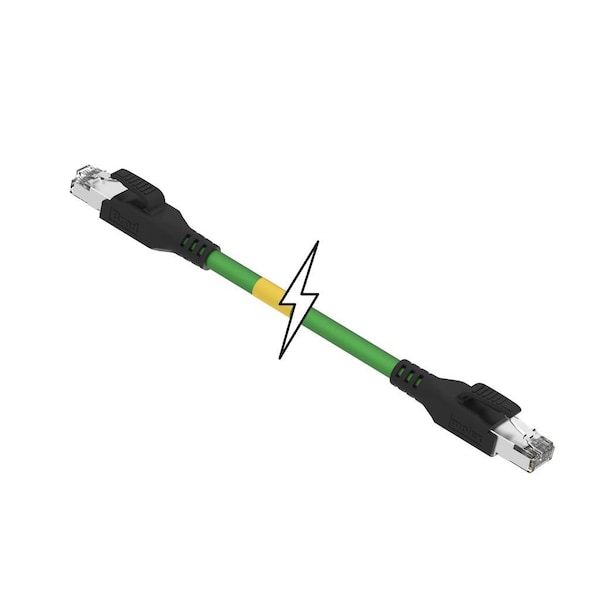

ENET MMJ RJ45/RJ45 10M Brad Core AME
| Orientation | Straight to Straight |
|---|---|
| Color - Cable Jacket | Green |
| Poles | 4 |
| Temperature Range - Operating | -25° to +85°C |
| Product Name | Industrial Ethernet, RJ45 |
| Material - Plating Mating | Gold |
| Voltage - Maximum | 30V AC (RMS) / 42V DC |
| Performance Category | 5e |
| IP Rating | IP20 |
| UL | E200650 |
| Wire/Cable Type | AWM 21215, Shielded TPE |
| Gender | Male-Male |
| Material - Connector Body | TPU |
| Material - Contact | Phosphor Bronze |
| Material - Cable Jacket | TPU |
| Series | 120108 |
| Connector End A | RJ-45 (standard) |
| LED Indicator | No |
| Coupling Style | Latch, Push |
| Type | Double Ended |
| Protocol | EtherNet |
| Cable Length | 10 m |
| Cable Diameter | 6.70mm (.264") |
| Connector End B | RJ-45 |
| Current - Maximum per Contact | 1.5 A |
| Wire Size (AWG) | 22 |
| Package Quantity | 1 |
