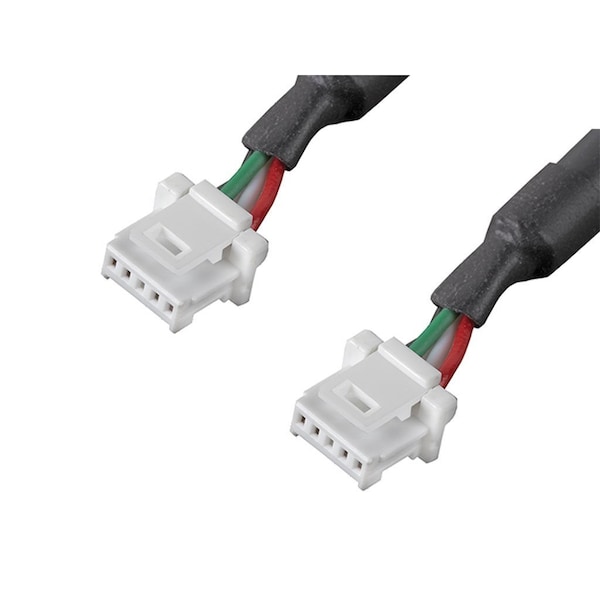

Expresslink 2.0 Pico-Clasp Female-To-Pico-Clasp Female Cable Assembly, Single Row, 300.00Mm Length
| Cable Length | 300 mm |
|---|---|
| Termination Interface: Style | Compression, Crimp |
| Voltage - Maximum | 100V AC (RMS)/DC |
| Plating min - Termination | 0.914 um |
| Current - Maximum per Contact | 1.5 A |
| Wire/Cable Type | UL 2725 |
| Wire Insulation Diameter | 0.80mm max. |
| Material - Resin | Nylon |
| Number of Rows | 1 |
| Material - Plating Mating | Gold |
| Gender | Female-Female |
| Wire Size AWG | 28 |
| Material - Metal | Phosphor Bronze |
| Lock to Mating Part | Yes |
| Circuits (Loaded) | 8 |
| Material - Plating Termination | Tin |
| Plating min - Mating | 0.76 um |
| Pitch - Mating Interface | 1 mm |
| Color - Resin | White |
| Package Quantity | 1 |
