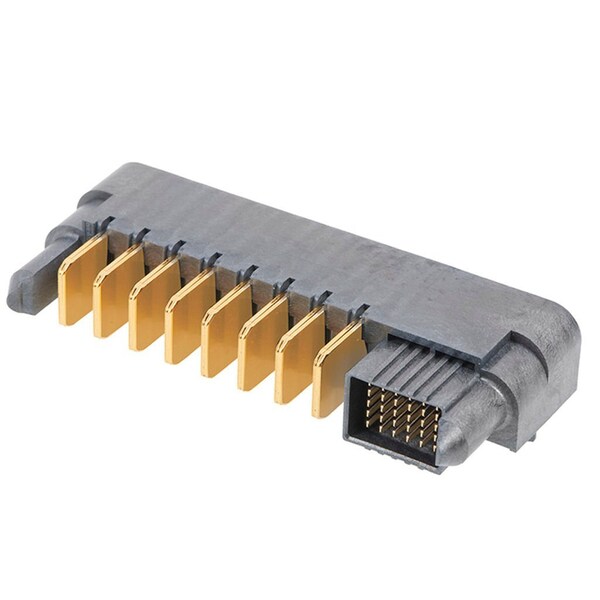

Ensamble de enchufe en ángulo recto con guía de pines extremo, 8 circuitos de alimentación.
| Application | Signal, Power, Board to-Board |
|---|---|
| Series | 214113 |
| Durability (mating cycles max) | 200 |
| Guide to Mating Part | Yes |
| Glow-Wire Capable | No |
| Product Name | EXTreme Guardian HD |
| CSA | LR19980 |
| Orientation | Right Angle |
| PCB Thickness - Recommended | 1.58 mm |
| Polarized to PCB | Yes |
| Material - Plating Mating | Gold |
| Breakaway | No |
| Material - Metal | Copper |
| Circuits (Loaded) | 38 |
| (p)ower-(s)ignal Configuration | 8p - 30s |
| Component Type | PCB Header |
| Temperature Range - Operating | -40° to +105°C |
| Flammability | 94 V to 0 |
| Number of Rows | 1, 5 |
| Termination Interface Style | Through Hole - Compliant Pin |
| Polarized to Mating Part | Yes |
| Voltage - Maximum | 125 V |
| PC Tail Length | 2.53 mm, 3.3 mm |
| Plating min - Mating | 0.762 um |
| Keying to Mating Part | None |
| Color - Resin | Black |
| Pitch - Mating Interface | 2 mm, 5.78 mm |
| Material - Resin | Liquid Crystal Polymer |
| PCB Retention | Yes |
| Current - Maximum per Contact | 80 A |
| First Mate / Last Break | No |
| PCB Locator | Yes |
| UL | E29179 |
| Material - Plating Termination | Tin |
| Lock to Mating Part | No |
| Package Quantity | 1 |
