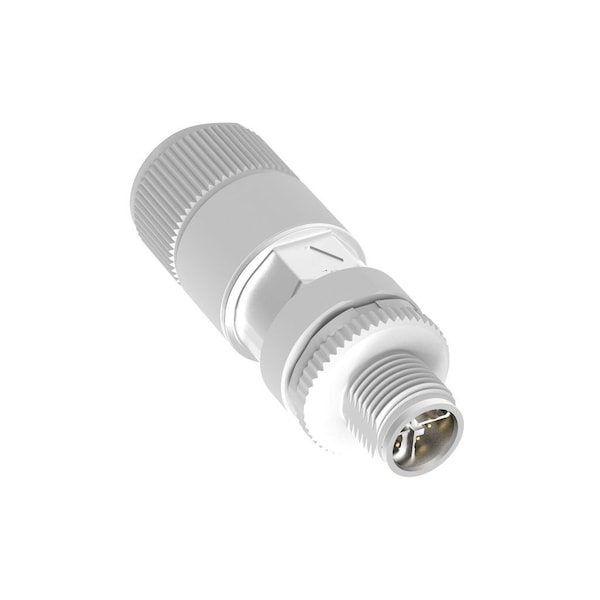

Conector FA M12 CAT6A 8P XC MA STR SHLD IDC de Molex, diseñado para proporcionar una conexión de alta calidad y rendimiento en aplicaciones de red. Cumple con los estándares de la industria para garantizar la máxima velocidad de transmisión de datos.
| Orientation | Straight |
|---|---|
| Material - Plating Mating | Gold |
| Keyway | X-coded |
| Cable Diameter | 5.50-9.00mm (.216-.354") |
| Material - Coupling Nut | Nickel-plated Brass |
| Gender | Male |
| Coupling Type | External Thread |
| Material - Connector Body | Nickel-plated Brass, Zinc Die-Cast with Nickel |
| Temperature Range - Operating | -40°C to +85°C |
| UL | E361772 |
| Wire Size AWG | 24-22/1, 27-22/7 |
| Poles | 8 |
| Current - Maximum per Contact | 0.5 A |
| Voltage - Maximum | 48 V |
| Approvals | cCSAus certified |
| Diagnostics / LEDs | No |
| Type | Field Attachable Connector |
| Material - Contact | Brass |
| Product Name | Micro-Change Cat6A |
| IP Rating | IP67 |
| Communication Speed | 10-Gigabit Ethernet |
| Series | 120341 |
| Package Quantity | 1 |
