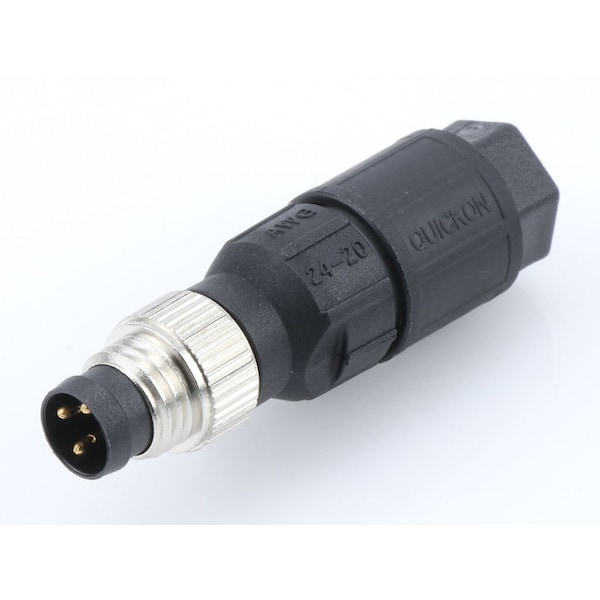

FA M8 3P AC MA STR IDC UNSH 025-05mm
| Poles | 3 pole |
|---|---|
| Voltage - Maximum | 60 V |
| Current - Maximum per Contact | 3 A |
| Wire Size AWG | 20-24 |
| Coupling Type | External Thread |
| Cable Diameter | 2.50-5.20mm (.098-.205") |
| Gender | Male |
| Orientation | Straight |
| Keyway | None |
| Material - Plating Mating | Gold |
| Temperature Range - Operating | -25°C to +80°C |
| Material - Connector Body | PA |
| Material - Coupling Nut | Nickel-Plated, Zinc Die-Cast |
| Material - Contact | Copper Alloy |
| Series | 120091 |
| Diagnostics / LEDs | No |
| Type | Field Attachable Connector |
| Product Name | Nano-Change |
| IP Rating | IP67 |
| Approvals | cCSAus certified |
| Package Quantity | 1 |
