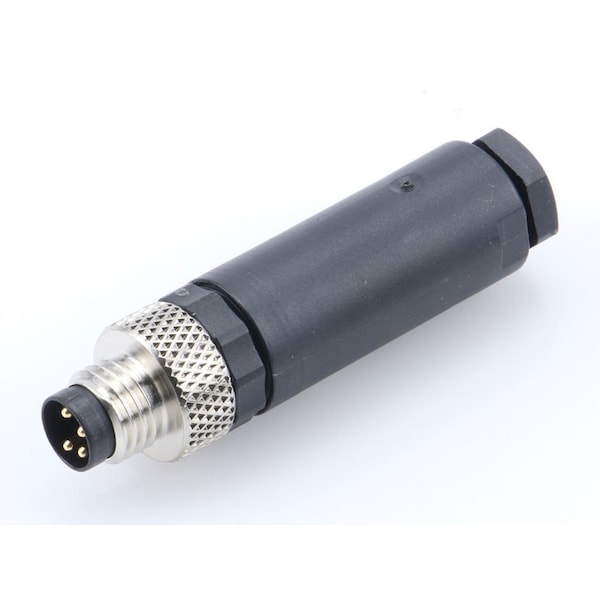

FA M8 4P MA STR SCR UNSH
| Orientation | Straight |
|---|---|
| Current - Maximum per Contact | 4 A |
| Keyway | None |
| Material - Coupling Nut | Nickel-Plated, Zinc Die-Cast |
| Voltage - Maximum | 30 V |
| Wire Size AWG | 20-26 |
| Temperature Range - Operating | -40°C to +85°C |
| Coupling Type | External Thread |
| Poles | 4 |
| Material - Connector Body | PA |
| Cable Diameter | 3.50-5.00mm (.138-.197") |
| Material - Plating Mating | Gold |
| Gender | Male |
| Package Quantity | 1 |
