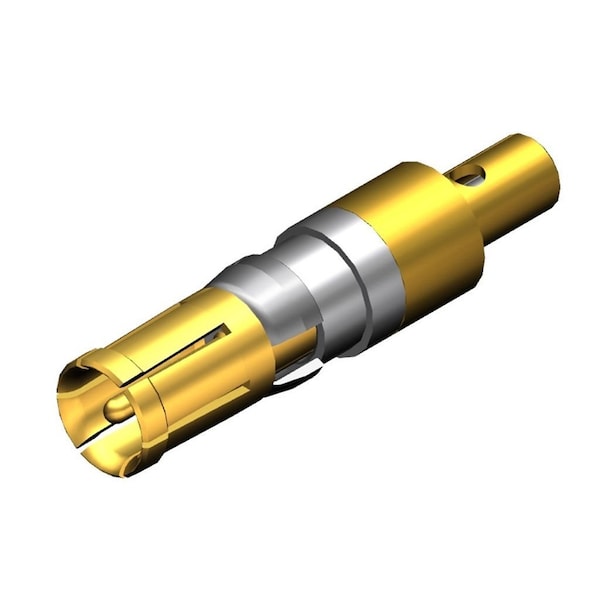

Fct Coaxial Contact, Female Straight, Solder Cable Termination, 50 Ohm
| Series | 173112 |
|---|---|
| Impedance | 50Ω |
| Type | Mixed Layout |
| Current - Maximum per Contact | 2 A |
| Material - Contact | Copper Alloy |
| Orientation | Straight |
| Termination Style | Solder |
| Temperature Range - Operating | -55 to 135 deg C |
| Gender | Female |
| Plating - Contact | Gold over Nickel |
| Durability (mating cycles max) | 200 |
| Plating min - Termination | 0.2 um |
| Plating min - Mating | 0.2 um |
| Contact Type | Coaxial |
| Material - Plating Termination | Tin |
| Wire/Cable Type | RG-178BU, RG-196AU, RG-404U |
| Product Name | FCT Products |
| Package Quantity | 1 |
