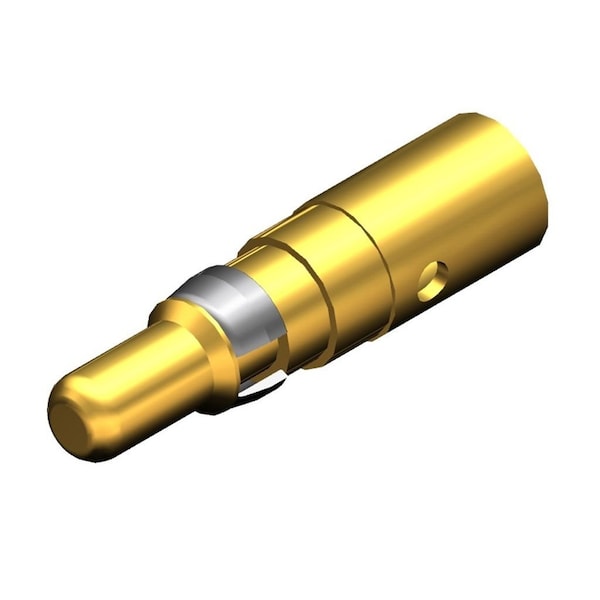

Fct High Power Contact, Male, Straight, Crimp, 0.20Microm Gold Plating
| Wire Size AWG | 10, 8 |
|---|---|
| Plating - Contact | Gold over Nickel |
| Orientation | Straight |
| Current - Maximum per Contact | 40 A |
| Plating min - Termination | 0.2 um |
| Material - Retaining Clip | Copper Alloy |
| Plating min - Mating | 0.2 um |
| Material - Contact | Copper Alloy |
| Termination Style | Crimp |
| Temperature Range - Operating | -55 to 155 deg C |
| Gender | Male |
| Durability (mating cycles max) | 200 |
| Package Quantity | 1 |
