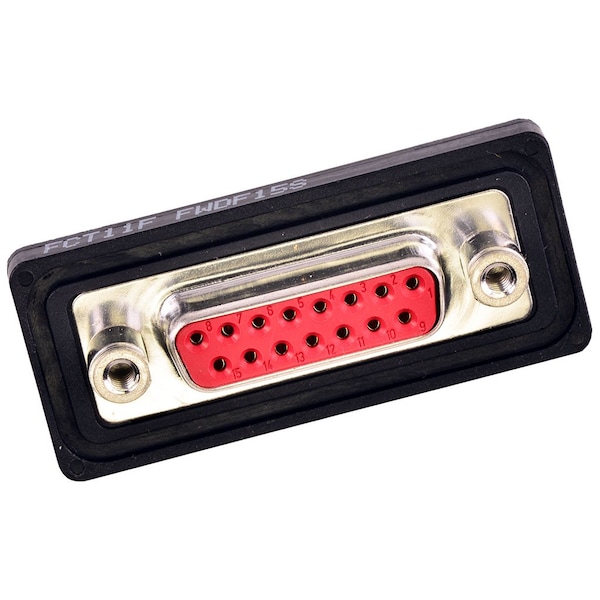

FCT IP67 FWD SLD RCPT 15 PN FMNT
| Circuits (maximum) | 15 |
|---|---|
| Gender | Female |
| Number of Rows | 2 |
| Material - Resin | PBT |
| Temperature Range - Operating | -25° to +70°C |
| Orientation | Straight |
| Material - Contact | Copper Alloy |
| Termination Style | Solder Cup |
| Pitch - Termination Interface | 2.84 mm |
| Plating - Contact | Gold over Nickel Phosphorus |
| Circuits (Loaded) | 15 |
| Ports | 1 |
| Waterproof / Dustproof Type | IP67 |
| Color - Resin | Red |
| Panel Mount | Front |
| Shielded | Yes |
| Waterproof / Dustproof | Yes |
| Wire Size AWG | 20 |
| Plating - Shell | Tin |
| Durability (mating cycles max) | 500 |
| Pitch - Mating Interface | 2.84 mm |
| Panel Mount Method | Thread-In |
| Polarized to Mating Part | Yes |
| Current - Maximum per Contact | 7.5 A |
| Material - Shell | Brass |
| Package Quantity | 1 |
