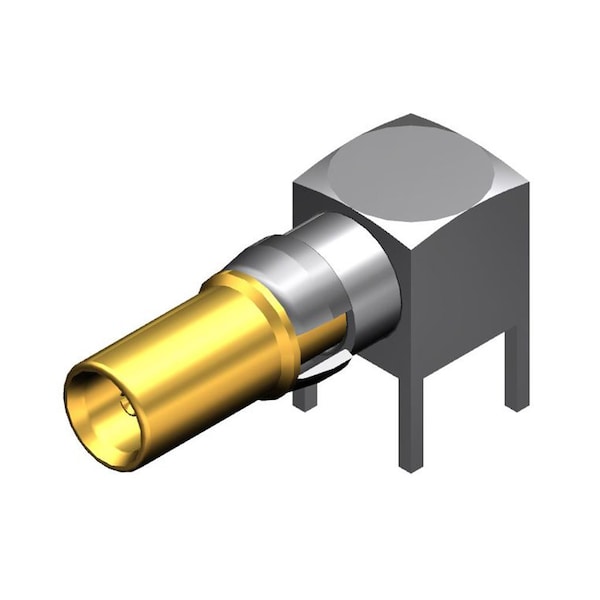

Fct Term Hfreq Ra Pc Plg 50 Ohm Din
| Series | 173112 |
|---|---|
| Type | Mixed Layout |
| Contact Type | Coaxial |
| Termination Style | Through Hole |
| Material - Plating Mating | Gold over Nickel |
| Material - Contact | Copper Alloy |
| Product Name | FCT Products |
| Durability (mating cycles max) | 200 |
| Temperature Range - Operating | -55 to 135 deg C |
| Current - Maximum per Contact | 2 A |
| Orientation | Right Angle |
| Gender | Male |
| Plating min - Mating | 0.5 um |
| Material - Plating Termination | Tin |
| Impedance | 50Ω |
| Package Quantity | 1 |
