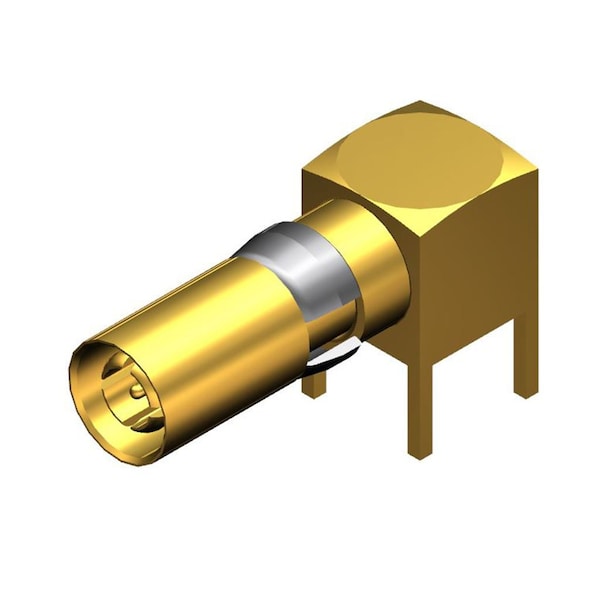

Fct Term Hfreq Ra Pc Rcpt 50 Ohm Din
| Contact Type | Coaxial |
|---|---|
| Current - Maximum per Contact | 2 A |
| Type | Mixed Layout |
| Product Name | FCT Products |
| Material - Plating Termination | Gold over Nickel |
| Termination Style | Through Hole |
| Series | 173112 |
| Temperature Range - Operating | -55 to 135 deg C |
| Durability (mating cycles max) | 500 |
| Orientation | Right Angle |
| Impedance | 50Ω |
| Plating min - Mating | 1.3 um |
| Material - Plating Mating | Gold over Nickel |
| Material - Contact | Copper Alloy |
| Gender | Female |
| Package Quantity | 1 |
