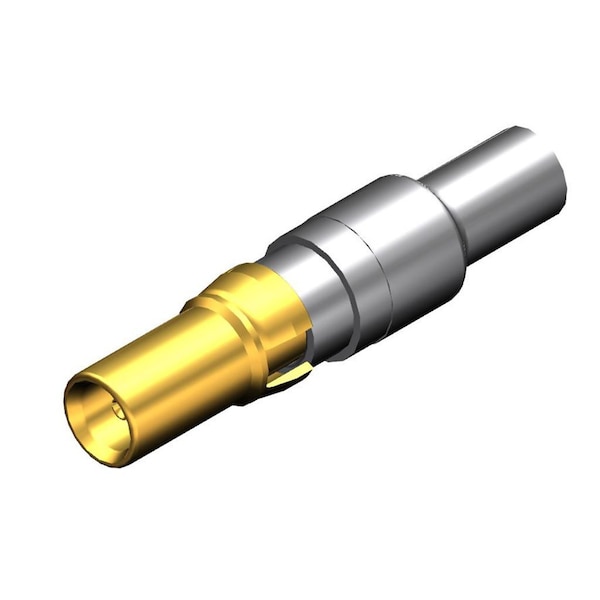

Fct Term Hfreq Sdr/Crp Plg 75 Ohm Din
| Type | Mixed Layout |
|---|---|
| Plating min - Mating | 0.5 um |
| Wire/Cable Type | RG-179BU, RG-187AU |
| Gender | Male |
| Material - Contact | Copper Alloy |
| Impedance | 75 Ω |
| Durability (mating cycles max) | 200 |
| Temperature Range - Operating | -55 to 135 deg C |
| Material - Plating Mating | Gold over Nickel |
| Product Name | FCT Products |
| Series | 173112 |
| Contact Type | Coaxial |
| Current - Maximum per Contact | 2 A |
| Orientation | Straight |
| Termination Style | Solder |
| Material - Plating Termination | Tin |
| Package Quantity | 1 |
