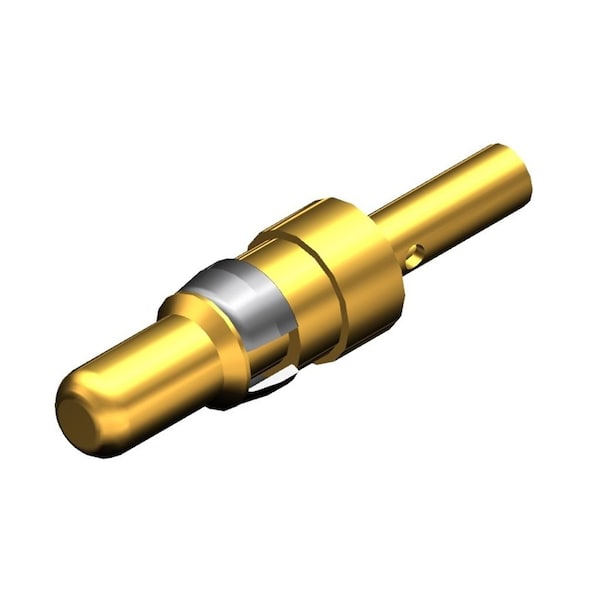

Fct Term Hpwr Crp Plg 10 Amp 16-20 Awg
| Material - Retaining Clip | Copper Alloy |
|---|---|
| Termination Style | Crimp |
| Material - Contact | Copper Alloy |
| Gender | Male |
| Plating min - Termination | 0.2 um |
| Plating - Contact | Gold over Nickel Phosphorus |
| Plating min - Mating | 0.1 um |
| Temperature Range - Operating | -55 to 155 deg C |
| Wire Size AWG | 16, 18, 20 |
| Current - Maximum per Contact | 10 A |
| Orientation | Straight |
| Durability (mating cycles max) | 200 |
| Series | 173112 |
| Contact Type | High Power |
| Type | Mixed Layout |
| Product Name | FCT Products |
| Material - Plating Termination | Gold over Nickel |
| Package Quantity | 1 |
