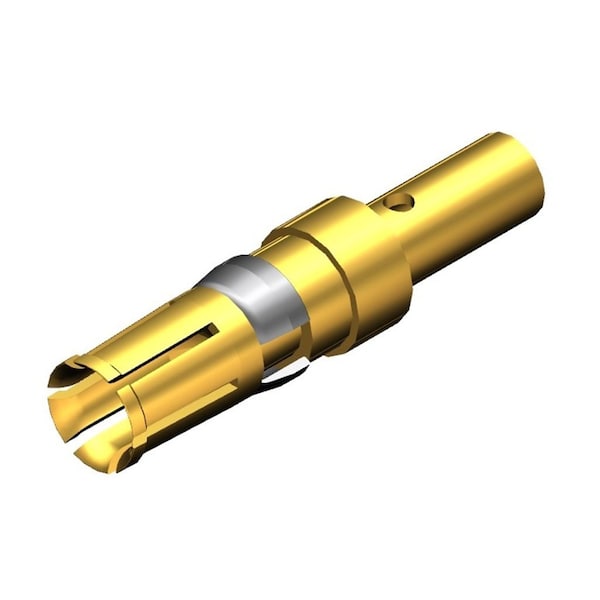

Fct Term Hpwr Crp Rcpt 20 Amp 12-14 Awg
| Plating min - Mating | 0.1 um |
|---|---|
| Gender | Female |
| Current - Maximum per Contact | 20 A |
| Temperature Range - Operating | -55 to 155 deg C |
| Plating - Contact | Gold over Nickel Phosphorus |
| Wire Size AWG | 12, 14 |
| Termination Style | Crimp |
| Material - Contact | Copper Alloy |
| Material - Retaining Clip | Copper Alloy |
| Plating min - Termination | 0.2 um |
| Orientation | Straight |
| Durability (mating cycles max) | 200 |
| Series | 173112 |
| Product Name | FCT Products |
| Type | Mixed Layout |
| Contact Type | High Power |
| Material - Plating Termination | Gold over Nickel |
| Package Quantity | 1 |
