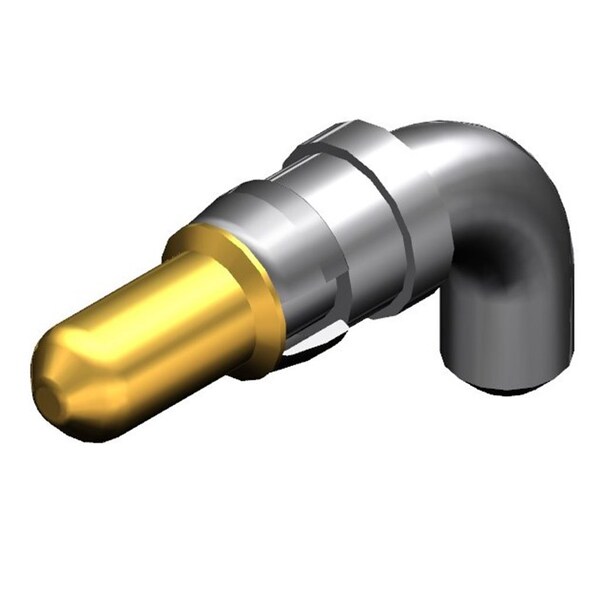

Fct Term Hpwr Ra Pc Plg 40 Amp Din
| Series | 173112 |
|---|---|
| Type | Mixed Layout |
| Material - Plating Termination | Tin |
| Termination Style | Through Hole |
| Orientation | Right Angle |
| Contact Type | High Power |
| Product Name | FCT Products |
| Current - Maximum per Contact | 40 A |
| Material - Plating Mating | Gold over Nickel |
| Material - Retaining Clip | Copper Alloy |
| Durability (mating cycles max) | 200 |
| Material - Contact | Copper Alloy |
| Plating min - Mating | 0.2 um |
| Wire Size (AWG) | 10, 12 |
| Temperature Range - Operating | -55 to 155 deg C |
| Gender | Male |
| Package Quantity | 1 |
