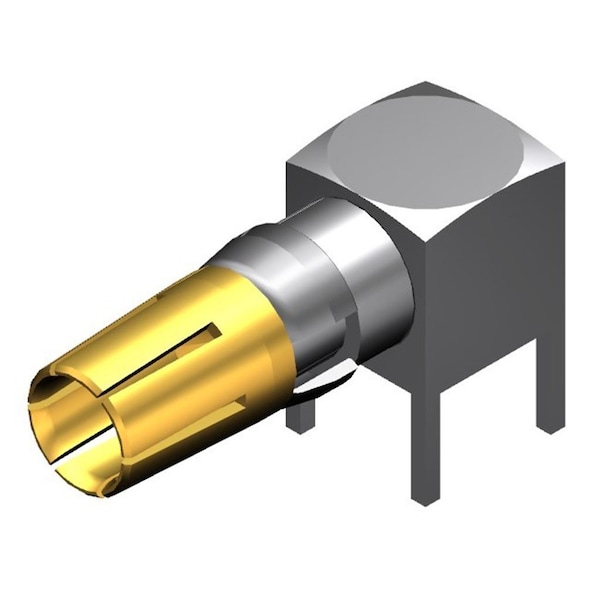

Fct Term Hpwr Ra Pc Rcpt 40 Amp Din
| Series | 173112 |
|---|---|
| Type | Mixed Layout |
| Contact Type | High Power |
| Plating min - Mating | 0.5 um |
| Product Name | FCT Products |
| Material - Plating Mating | Gold over Nickel |
| Material - Retaining Clip | Copper Alloy |
| Material - Contact | Copper Alloy |
| Temperature Range - Operating | -55 to 155 deg C |
| Material - Plating Termination | Tin |
| Current - Maximum per Contact | 40 A |
| Gender | Female |
| Orientation | Right Angle |
| Durability (mating cycles max) | 200 |
| Termination Style | Through Hole |
| Package Quantity | 1 |
