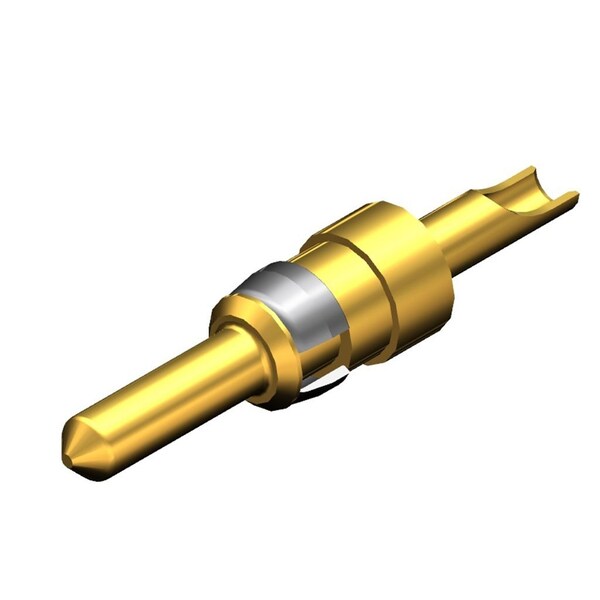

Fct Term Hpwr Sdr Plg 10 Amp 16-20 Awg
| Type | Mixed Layout |
|---|---|
| Temperature Range - Operating | -55 to 155 deg C |
| Material - Retaining Clip | Copper Alloy |
| Orientation | Straight |
| Termination Style | Solder Cup |
| Durability (mating cycles max) | 500 |
| Contact Type | High Power |
| Material - Plating Termination | Gold over Nickel |
| Product Name | FCT Products |
| Gender | Male |
| Material - Contact | Copper Alloy |
| Series | 173112 |
| Wire Size (AWG) | 16, 18, 20 |
| Plating min - Mating | 0.8 um |
| Current - Maximum per Contact | 10 A |
| Material - Plating Mating | Gold over Nickel |
| Package Quantity | 1 |
