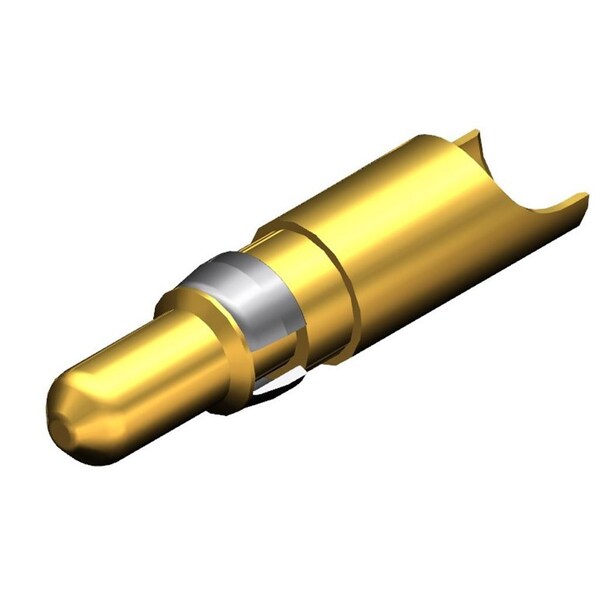

Fct Term Hpwr Sdr Plg 40 Amp 8-12 Awg
| Material - Retaining Clip | Copper Alloy |
|---|---|
| Material - Plating Mating | Gold over Nickel |
| Type | Mixed Layout |
| Material - Contact | Copper Alloy |
| Plating min - Mating | 0.8 um |
| Durability (mating cycles max) | 500 |
| Wire Size (AWG) | 8, 10, 12 |
| Orientation | Straight |
| Current - Maximum per Contact | 40 A |
| Series | 173112 |
| Gender | Male |
| Termination Style | Solder Cup |
| Material - Plating Termination | Gold over Nickel |
| Temperature Range - Operating | -55 to 155 deg C |
| Product Name | FCT Products |
| Contact Type | High Power |
| Package Quantity | 1 |
